Product Details:
Payment & Shipping Terms:
|
| Name: | Stepless Cable Machine For Taping Line | Usage: | Wire Taping/wrapping |
|---|---|---|---|
| Max. OD Of Taping Wire: | 100mm | Taping Width: | 15~80 Mm |
| Pitch Change: | Step-less,adjustable | Taping Tension Range: | 2.5~15kg |
| Drive Motor Power: | 15KW(AC Motor With Inverter) | Warranty Period: | 12 Months |
| Motor Brand: | Siemens | ||
| High Light: | 15KW Automatic Wrapping Machine,Cable Wire Wrapping Machine 15KW,Stepless Wire Taping Machine |
||
15KW Automatic Stepless Cable Machine For High Speed Taping Line
1. Application
The high speed taping line is mainly used for taping/wrapping power cable, control cable and shielded cable,With the function of wire-breaking and wire-finishing.The machine is adjusted by SIEMENS PLC to adjust the working condition of each electric.The start-up and running speed of AC motor is controlled by SIEMENS inverter. Electric system is with an advanced technical, easy to operate, reliable to operate.
2. Main technical datas
| Max. OD of taping wire | 100 mm |
| ID of hollow shaft | 120 mm |
| Taping pad size (O.D.× I.D.×W.) | 600 x 80mm x (15~80mm) |
| Taping width | 15~80 mm |
| Thickness of tape | 0.1~0.5 mm |
| Driving motor | 15 KW(AC motor with inverter) |
| Max. rotating speed of taping head | 800 r/min(Taping width:80mm) |
| Max. rotating speed of taping head | Non-woven fabric, glass cloth, semiconductor fabric and so on |
| Taping tension | 2.5~15KG |
| The structure of taping head | 2B, Eccentric |
| Pitch changing | Step-less |
|
Pneumatic brake device With the function of right and left rotating and stopping work. With the function of wire-breaking and wire-finishing. |
|
3. Spare Parts Brands
3.1 Motor: Siemens
3.2 Inverter : Japan Yaskawa
3.3 Temperature Control Meter: Japan RKC
3.4 Auxiliary Relay: Japan Omron
3.5 Bearing : NSK

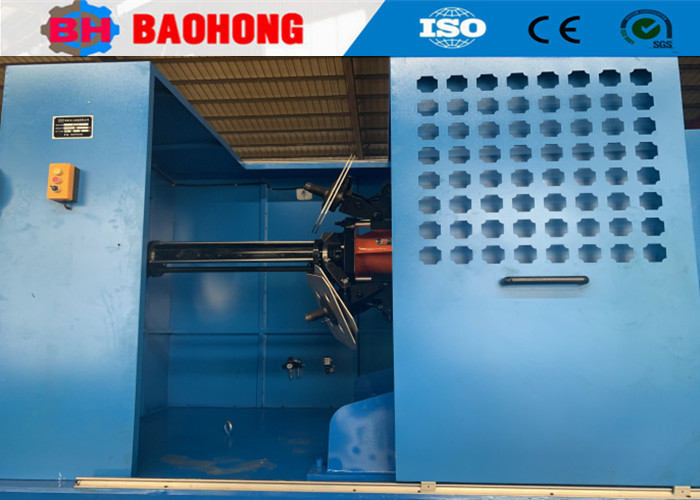

4. Photos
5. Packing Photos
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
