40m/Min Caterpillar Type Wire Pulling Cable Tractor Machine Stranding Extruding
1. Application
They are mainly used to draw all kinds of cables.It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.And has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track.
2. Main technical data
| Max pulling force | 1600KG |
| OD of applicable cable | 10~100 mm |
| Linear speed | 40m/min |
| Touching length of flat-belt | 2300mm |
| Width of belt | 120mm |
| The QTY of cylinder | 7pairs (Dia. of cylinder: 100) |
| Driving motor | 11KW(AC motor with inverter) |
|
Up and down flat-belt haul-off type; compacting and tensioning pneumatically. # shape wire guiding rollers are equipped on wire inlet and outlet. |
|
3. Company introduction
Hejian Baohong Electrical Machinery Co., Ltd. is a professional Stranding Machine manufacturer which produces Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine.
Hejian Baohong Electrical Machinery Co., Ltd., the founder Mr. Cheng has spent more than 30 years in the wire and cable machines manufacturing industry. With a wealth of experience, Mr. Cheng started the company in 2006. In the beginning, our company is very small, less than 10 workers and less than 1000 square meters.
After a long period of development, Hejian Baohong Electrical Machinery Co., Ltd., can produce Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine and Various Auxiliary Machinery.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.
Hejian Baohong Electrical Machinery Co., Ltd., has developed into one of the most important Stranding Machine Manufacturer in China.

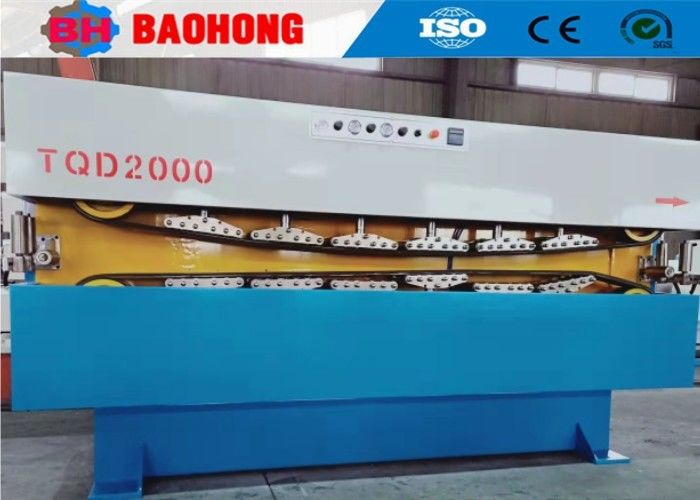

4. Photos
