| Product Name: | 40m/Min Electronic Control Cable Caterpillar For Wire Pulling | Type: | Caterpillar Type |
|---|---|---|---|
| Application: | Wire Pulling | Materials: | Steel/Cu/Al |
| Linear Speed: | 40m/min | Traction Force: | 1600 |
| Machine Color: | Optional | Warranty Time: | 1 Year |
| High Light: | Electronic Control Cable Caterpillar,Wire Pulling Cable Caterpillar,40m/Min Wire Caterpillar Machine |
||

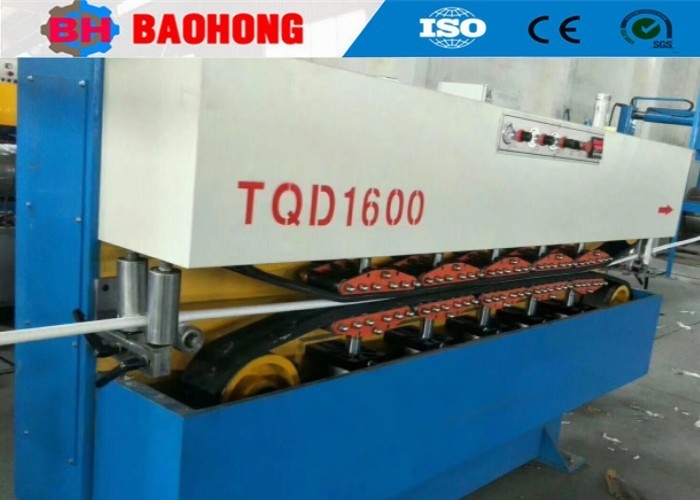

40m/Min Electronic Control Cable Caterpillar For Wire Pulling
1. Application
This machine is mainly used for pulling various cable ,the whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel,with electronic meter, it can display the line speed and meter length in time.It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.
2. Main technical datas
| Max pulling force | 1600KG |
| OD of applicable cable | 10~100 mm |
| Linear speed | 40m/min |
| Touching length of flat-belt | 2300mm |
| Width of belt | 120mm |
| The QTY of cylinder | 7pairs (Dia. of cylinder: 100) |
| Driving motor | 11KW(AC motor with inverter) |
|
Up and down flat-belt haul-off type; compacting and tensioning pneumatically. # shape wire guiding rollers are equipped on wire inlet and outlet. |
|
3. Company introduction
Hejian Baohong Electrical Machinery Co., Ltd. is a professional Stranding Machine manufacturer which produces Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine.
Hejian Baohong Electrical Machinery Co., Ltd., the founder Mr. Cheng has spent more than 30 years in the wire and cable machines manufacturing industry. With a wealth of experience, Mr. Cheng started the company in 2006. In the beginning, our company is very small, less than 10 workers and less than 1000 square meters.
After a long period of development, Hejian Baohong Electrical Machinery Co., Ltd., can produce Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine and Various Auxiliary Machinery.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.
Hejian Baohong Electrical Machinery Co., Ltd., has developed into one of the most important Stranding Machine Manufacturer in China.
4. Photos
5. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
