| Product Name: | Wire And Cable Armouring Machine | Shape: | Planetary & Sun Shape |
|---|---|---|---|
| Bobbins: | 400 Mm, 500 Mm, 630 Mm ,etc | Power(630): | 75kw |
| Traction Wheel Diameter (500/400): | 2000 Mm | Materials: | Steel/Cu/Al |
| Warranty Period: | One Year | Color: | Customized |
| High Light: | steel wire armouring machine,steel tape armouring machine |
||

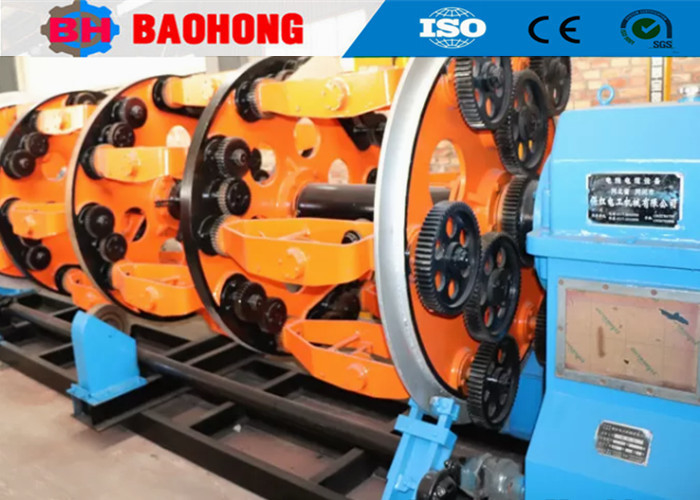

Steel Wire Cable Planetary Armouring Machine 400/24+24 Stable Structure
1. Application
This high speed machines mainly used for stranding copper wire,aluminum wire, steel wire,ACSR and wire rope.Accompanied with taping head,it can used for insulation cores and some control cable stranding process,and steel wire armouring .Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more,the equipment has high-powered, high speed.
2. Main Components
Central pay-off strand, armouring hose, die holder,taping device,traction device,meter counter, take-up traverse device,transminssion system and electric control system.
3.Technical parameters
Model (Steel Wire Armoring Machine) |
JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Steel wire diameter | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | |
| Maximum stranded OD | 40 mm | 55 mm | 60 mm | 70 mm | |
| Stranding Pitch | 24 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 |
36 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
42 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
| 48 Bobbin Stranding Cage | 38-752 | 51-942 | 63- 1144 | 500-4120 | |
| Rotating Speed | 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 68 .3 r/min | 55 r/min |
| 36 Bobbin Stranding Cage | 88 r/min | 80 r/min | 58 .3 r/min | 45 r/min | |
| 42 Bobbin Stranding Cage | 78 r/min | 70 r/min | 48 .3 r/min | 35 r/min | |
| 48 Bobbin Stranding Cage | 68 r/min | 60 r/min | 38 .3 r/min | 28 r/min | |
Capstan |
Capstan Wheel Diameter | 1600 mm | 2000 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10T | 15T | 15T | 20T | |
Motor Power |
45 KW | 55 KW | 55 KW | 75 KW | |
Bobbin Size |
315 mm | 400 mm | 500 mm | 630 mm | |
Center Payoff Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Take- up Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Maximum Haul-off Linear Speed |
25 m/min | 30 m/min | 34 .7 m/min | 45 m/min | |
Central Height |
1000 mm | 1000 mm | 1000 mm | 1100 mm | |
4. Photos
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
