Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly

I'm Online Chat Now
Fast speed, 1000 RPM, I like the SKIP. Will Order one more soon. And also the rigid strander for 630 mm bobbin, 61 wires.

—— Mr Sam

Client is very satisfied. If you guys can make the delivery time shorter, that will be PERFECT!

—— Ms Liana

I'm really very happy to cooperate with you. Your machines have run for more than 3 years without any damage. The quality is good. Hope your business well!

—— Mr. Singh

Thanks for your great help for the new workshop. The rigid strander is good. I like it. Thank you very much.

—— Mr. Sandeep Jain

Good Machines, Good Price!

—— Mr. Raj Afzal

Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly

Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly
Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly

Large Image :  Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly Get Best Price

Product Details:
Place of Origin: China
Brand Name: BH
Certification: ISO,CE
Model Number: CLY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: By Negotiation
Packaging Details: Seaworthy Packing For Export
Delivery Time: 115-125 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Name: Multi Core Power Cable Making Machine Usage: Cable Laying Up
Equipment Color: According To Customer Request Type: Cradle Shape
Stranding Pitch(1000): 200-2000 Mm PLC Brand: SIEMENS
Max. Haul-off Force(630): 10 T Guarantee Time: 1 Year
Use For: Stranding Or Armouring
High Light:

Multi Core Power Cable Making Machine

,

Cradle Type Power Cable Making Machine

,

2000mm Drum Laying Up Machine

Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly



1. Application
The machine is used for stranding or armouring all kinds of different cross-section core rubber cable, power cable, control cable and charging pile cable production process.

2.​ Features

2.1 More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.

2.2 Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling circle , planet retreat- spiralling and sprocket retreat-spiralling.

2.3 The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.

3. Technical parameters

Model (Laying-up Machine) CLY-630/3+3 CLY-800/3+3 CLY -1000/3+1+1 CLY -1250/3+1+1 CLY -1600/3+1+1
Diameter of single wire φ5-10 mm φ5-12 mm φ8-20mm φ8-25 mm φ10-35 mm
Maximum stranded conductor OD φ30 mm φ40 mm φ63 mm φ70 mm φ80 mm
Stranding Pitch 50-800 mm 95-1500 mm 200-2000 mm 420-3500 mm 550-5176 mm
Capstan Capstan Wheel Diameter 1000 mm 1200 mm 1800 mm 2000 mm 2500 mm
Maximum Haul-off Force 10 T 12 T 15 T 20 T 25 T
Motor Power 18.5 KW 22 KW 30 KW 37 KW 55 KW
Bobbin Size 630 mm 800 mm 1000 mm 1250 mm 1600 mm
Take-up Bobbin 1600 mm 1800 mm 2000 mm 2500 mm 3150 mm
Maximum Haul-off Linear Speed 60 m/min 60 m/min 34 m/min 28 m/min 21 m/min
Central Height 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm

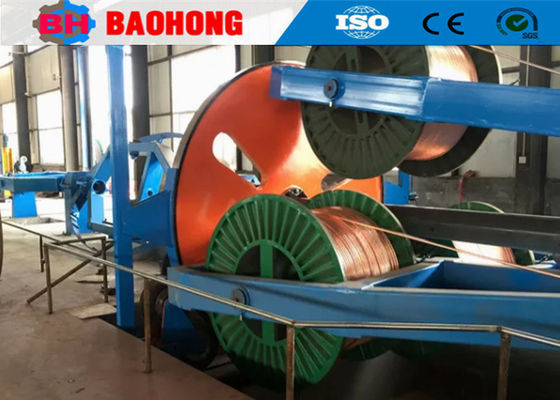

4. Photo
Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly 0Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly 1

5. Packing photo
Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly 2

6. Our factory and introduction
Multi Core Power Cable Making Machine Cradle Type 1+1+3/1250 Eco - Friendly 3
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
