High Speed Laying Up Machine , Cradle Type Underground Cable Machine

High Speed Laying Up Machine , Cradle Type Underground Cable Machine
High Speed Laying Up Machine , Cradle Type Underground Cable Machine

Large Image :  High Speed Laying Up Machine , Cradle Type Underground Cable Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: BH
Certification: ISO,CE
Model Number: CLY
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: By Negotiation
Packaging Details: Standard Sea Worthy Package
Delivery Time: 95-100 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 15 sets per month
Detailed Product Description
Product Name: High Speed Laying Up Machine Bobbin Sizes: 800 1000 1250 1400 1600 1800 2000
Application: Laying Up Stranding Pitch(1000): 200-2000 Mm
Capstan Wheel Diameter(630): 1000 PLC Brand: SIEMENS
Touch Screen Brand: SIEMENS Color: Customization
Guarantee Time: 1 Year Guarantee
High Light:

High Speed Laying Up Machine

,

Cradle Underground Cable Laying Machine

,

21RPM Rotation Cable Laying Machine

High Speed Laying Up Machine , Cradle Type Underground Cable Machine

1. Application

The machine is mainly used for cabling 3 to 7 core wires.It manufactures both back-twist round cable and sector shaped cables without back-twist.Also this type machine can be used for telephone cable,control cable,mine cable,plastic cable and crosslinked cable.Non metal wrapping and metal armoring could be done all the same time with stranding.


2.​ Features
2.1 More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.
2.2 Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling circle , planet retreat- spiralling and sprocket retreat-spiralling.
2.3 The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.


3. Technical parameters

Model (Laying-up Machine) CLY-630/3+3 CLY-800/3+3 CLY -1000/3+1+1 CLY -1250/3+1+1 CLY -1600/3+1+1
Diameter of single wire φ5-10 mm φ5-12 mm φ8-20mm φ8-25 mm φ10-35 mm
Maximum stranded conductor OD φ30 mm φ40 mm φ63 mm φ70 mm φ80 mm
Stranding Pitch 50-800 mm 95-1500 mm 200-2000 mm 420-3500 mm 550-5176 mm
Capstan Capstan Wheel Diameter 1000 mm 1200 mm 1800 mm 2000 mm 2500 mm
Maximum Haul-off Force 10 T 12 T 15 T 20 T 25 T
Motor Power 18.5 KW 22 KW 30 KW 37 KW 55 KW
Bobbin Size 630 mm 800 mm 1000 mm 1250 mm 1600 mm
Take-up Bobbin 1600 mm 1800 mm 2000 mm 2500 mm 3150 mm
Maximum Haul-off Linear Speed 60 m/min 60 m/min 34 m/min 28 m/min 21 m/min
Central Height 1000 mm 1000 mm 1000 mm 1000 mm 1000 mm


4. Photos

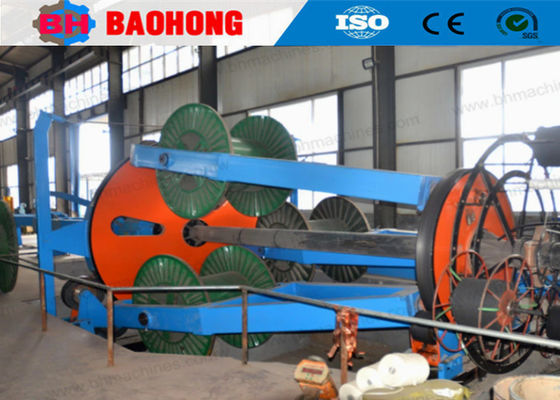

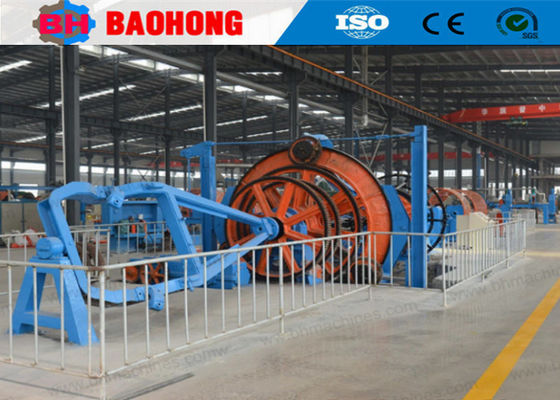

High Speed Laying Up Machine , Cradle Type Underground Cable Machine 0High Speed Laying Up Machine , Cradle Type Underground Cable Machine 1



5. Packing photos
High Speed Laying Up Machine , Cradle Type Underground Cable Machine 2



6. Our factory and introductions
High Speed Laying Up Machine , Cradle Type Underground Cable Machine 3
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.


Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.


Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.

Contact Details
Hejian BaoHong Electrical Machinery Co., Ltd.

Contact Person: Daisy

Tel: +8618256531268

Send your inquiry directly to us
