| Product Name: | Rigid Stranding Machine | Application: | Wire Stranding |
|---|---|---|---|
| Wire Materials: | Copper, Aluminum, Steel, Etc. | Max. Stranded Conductor OD: | φ35-55 Mm |
| Bearing Brand: | NSK | Inverter Brand: | SIEMENS |
| Touch Screen;PLC: | SIEMENS | Machine Color: | Optional |
| High Light: | rigid frame stranding machine,wire cable stranding machine |
||
Silent Rigid Stranding Machine AAC ACSR 240 Sqmm Long Working Lifespan
2.1 Pay-off 1 set
2.2 12.18B Rigid strander 1 set
2.3 Compacting and Assembly die holder 1 set
2.4 Concentric taping machine 1 set
2.5 Meter counter 1 set
2.6 Capstan (with 36-step gearbox) 1 set
2.7 Traverse stand 1 set
2.8 Column type take-up 1 set
2.9 Transmission shaft 1 set
2.10 Electric control cabinet (main cabinet and operation cabinet) 1 set each
3. Features
3.1 We customise this cage type stranding machine in accordance with customers' requirements.
3.2 Main motors are from SIEMENS.
3.3 All the bearings are from NSK.
3.4 Mechanical and electrical counting
3.5 Disk type Pneumatic brake for Cage.
3.6 PLC Equipped, optional.
4. Technical Parameters
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T | |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
| Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 | |
| Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 | |
| Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min | |
| Central Height | 1000 mm | 1100 mm | 1100 mm | |

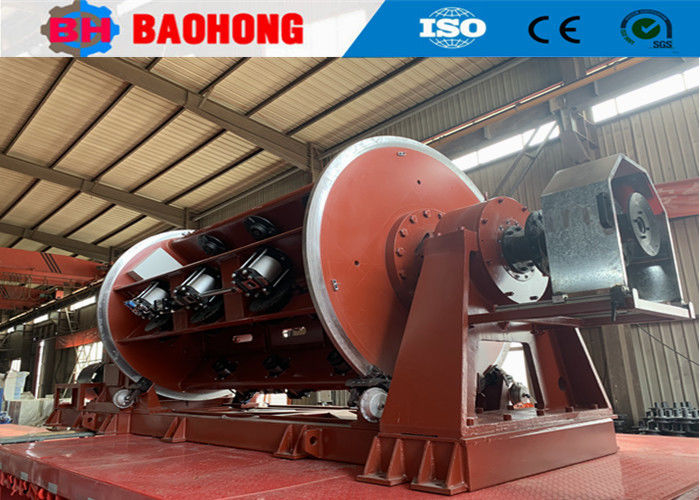

5. Photo

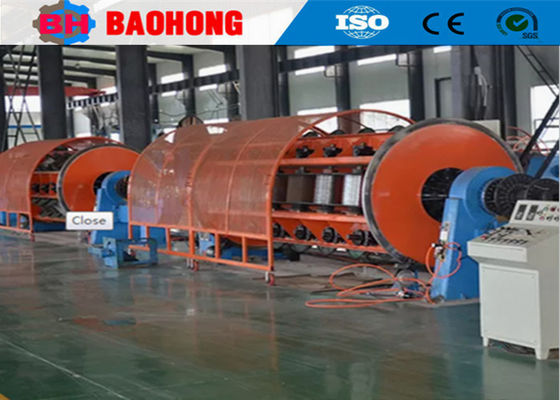

6. Packing photo
7. Our factory and company introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
