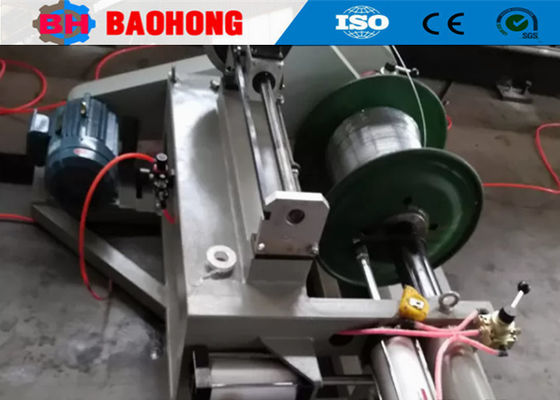

630-3150 Bobbin Wire Cable Rewinding Machine Spool Rewinding Type

630-3150 Bobbin Wire Cable Rewinding Machine Spool Rewinding Type

1. Company introduction

Hejian Baohong Electrical Machinery Co., Ltd. focuses on stranding machine for wire and cable.

Hejian Baohong Electrical Machinery Co., Ltd. has 31 years experience in the wire and cable industry.

Hejian Baohong Electrical Machinery Co., Ltd., has perfect pre-sales and after-sales service team.

All machines from Hejian Baohong Electrical Machinery Co., Ltd., are tested and adjust before delivery.

24 hours online, anytime, Hejian Baohong Electrical Machinery Co., Ltd., solves your installation and operation questions.

Machines of Hejian Baohong Electrical Machinery Co., Ltd., has warranty of 12 months.

Focus On Stranding Machine

Speed, Sincerity, Study

Mr. Cheng, the founder of Hejian Baohong Electrical Machinery Co., Ltd., has been engaged in the wire and cable machinery manufacturing industry for more than 30 years. He has extensive experience and founded the company in 2006. At the beginning, our company was very small, with less than 10 employees and an area of less than 1000 square meters.

Hejian Baohong Electrical Machinery Co., Ltd., the founder Mr. Cheng has spent more than 30 years in the wire and cable machines manufacturing industry. With a wealth of experience, Mr. Cheng started the company in 2006. In the beginning, our company is very small, less than 10 workers and less than 1000 square meters.

After a long period of development, Hejian Baohong Electrical Machinery Co., Ltd., can produce Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine and Various Auxiliary Machinery.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.

Hejian Baohong Electrical Machinery Co., Ltd., the process of production is as below:

2. Processing technology

A large bending machine is used to bend steel plates into a frame structure. The four frame structures evenly share a circular shape, which is welded together with the large disks on both sides. All structures are welded to the center thick walled pipe. The entire structure is sturdy and aesthetically pleasing.

After welded process, the whole structure is annealed in the annealing furnace, which will remove the internal stresses.

Then process the entire structure on a large horizontal lathe. This horizontal lathe is large enough to process each part in one step without the need to switch one end to the other. This process will maintain the concentricity of the entire structure and extend the service life of the bearings at both ends.

The deep hole drilling and boring machine can turn the installed holes for the clamping devices. The holes for one pair of clamping devices are turned in one step, which keeps the both holes in the same concentricity. The concentricity will reduce the wire-break rate and prolong the bearing for the clamping device.

This double column vertical lathe is used to turn the big disc for cradle type laying-up machine and the capstan of the stranding machine. This machine can turn and burnish the grooves to protect the cable and keep the same hual-off force.

Large planer type milling machine, which is used to mill the main chassis of the main stranding cage and take-up & pay-off chassis. The large planer type milling machine can ensure that each flat surfaces are machined in one time to keep the homogeneous height distribution of the surface machined by the milling machine. All of these will enable the whole machine runs smoothly.

3. Photos

4. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
