Product Details:
Payment & Shipping Terms:
|
| Product Name: | Skip Type Wire Stranding Machine | Model: | GB-630(500)/JGB-700/JGB-800 |
|---|---|---|---|
| Material: | Copper, Al,Steel Wire | PLC: | SIEMENS |
| Bearing: | NSK | Motor: | SIEMENS |
| Color: | According To Customer Request | Guarantee Period: | 12 Months |
| High Light: | wire stranding machine,electric cable making machine |
||

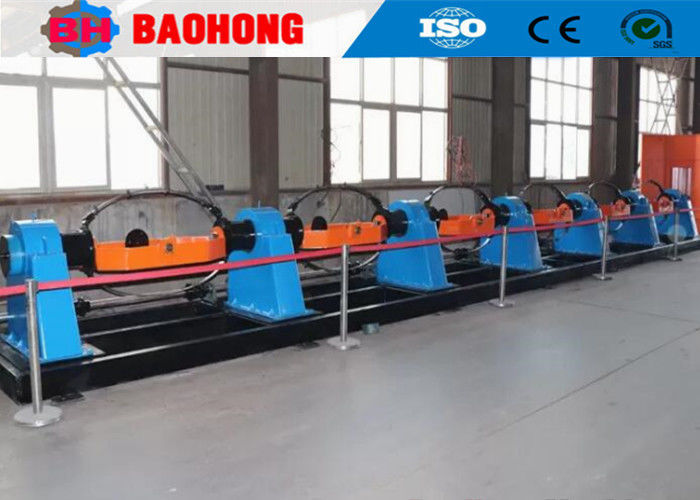

High Precision Skip Stranding Machine For Wire Cable Making 1000 RMP
1. Application
The machine is used for stranding copper, aluminum wire and steel wires.which has four model GB-630(500);JGB-700;JGB-800, with top quality in China and also the price is very competitive.
2. Structure

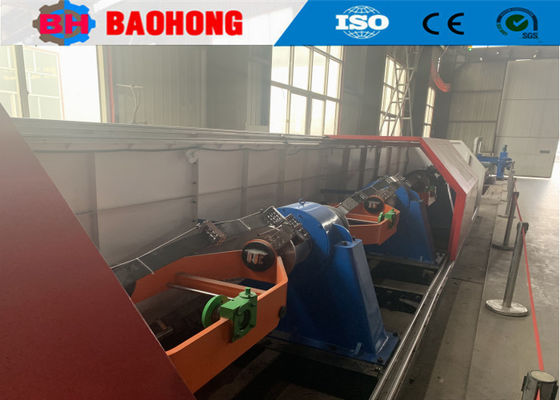

The machine works speedily with the stranding bow of high rotation speed. Both ends of the stranding bow are connected to the rotary arm.For this reason, the natural formation can be ensured when the bow rotates in a high speed.
|
Model (Skip Stranding Machine)
|
JGB-630(500) | JGB-700 | JGB-800 | |
|
Diameter of single wire
|
Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
|
Galvanized steel wire
|
φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
|
Maximum stranded conductor OD
|
φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
|
Motor Power
|
37 KW | 45 KW | 55 KW | |
|
Bobbin Size
|
630*475*127 | 710*530*127 | 800*600*127 | |
|
Center Payoff Bobbin
|
630*475*127 | 710*530*127 | 800*600*127 | |
|
Take-up Bobbin
|
1250*950*80 | 1600*1180*80 | 1600*1180*80 | |
|
Maximum Haul-off Linear Speed
|
235 m/min | 200 m/min | 170 m/min | |
|
Central Height
|
1000 mm | 1000 mm | 1000 mm | |
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Located in Hejian Economic Development Zone, Hebei Province, our company is the largest professional manufacturer of stranding machine and pay-off machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., LTD., covers an area of 10,000 square meters, production workshop 8000 square meters. The company has 60 employees, including 10 R&D personnel. At present, the annual output value exceeds 10 million US dollars, and it has developed into one of the most important manufacturers of stranding machines in China.
