12+18+24/630 Durable Copper Wire Manufacturing Machine Auto Loading
1. Application
The machine is suitable for stranding long length and section bare aluminum copper, aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables, Sector shapped conductors,round compacted.
2. Main components
2.1 Pay-off
2.2 Rigid strander
2.3 Compacting and Assembly die holder
2.4 Concentric taping machine
2.6 1200 capstan
2.7 Traversing stand
2.8 Column type take-up
2.9 Transmission shaft
2.10 Electric control cabinet
3. Features
3.1 We customise this cage type stranding machine in accordance with customers' requirements.
3.2 The loading and unloading are automatic positioning, which is very simple operation.
3.3 Bobbin group loading using hydraulic floor type. Side trolley loaders is also optional.
3.4 Slow positioning system makes sure the loading and unloading accurate angle.
3.5 Disk type Pneumatic brake for Cage.
3.6 PLC Equipped, optional.
4. Technical datas
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T | |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
| Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 | |
| Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 | |
| Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min | |
| Central Height | 1000 mm | 1100 mm | 1100 mm | |

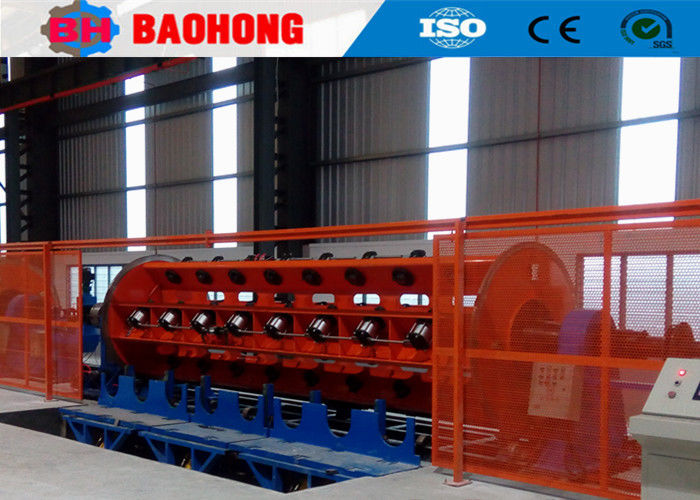

5. Photos
6. Packing photo

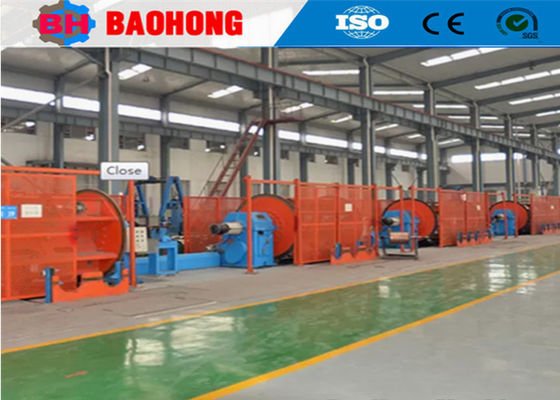

7. Our factory and introduction
