| Name: | Cradle Type Laying Up Machine | Reel Sizes: | 630 800 1000 1250 1600 |
|---|---|---|---|
| Materials: | Cu Wire, Al Wire And Insulated Cable Core | Type: | Cradle Shape |
| PLC,touch Screen: | SIEMENS | Motor Brand: | SIEMENS |
| Machine Color: | Optional | Warranty Period: | 12 Months |
| Usage: | Making PVC,PE,XLPE,RUBBER Insulated Power Cable | ||
| High Light: | Cradle Type Laying Up Machine,Tubular Underground Cable Laying Machine,Cradle Type Steel Laying Up Machine |
||
Cradle Type Laying Up Machine Low Noise CLY 2000/1+1+3 Steel Material
1. Application
Cradle type Laying up machine is used for making PVC,PE,XLPE,RUBBER insulated power cable , tapping and amoring rubber cable, special stranded cable and so on. The core can be round or sector.
2. Features
2.1 More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.
2.2 Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling circle , planet retreat-spiralling and sprocket retreat-spiralling.
2.3 The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |

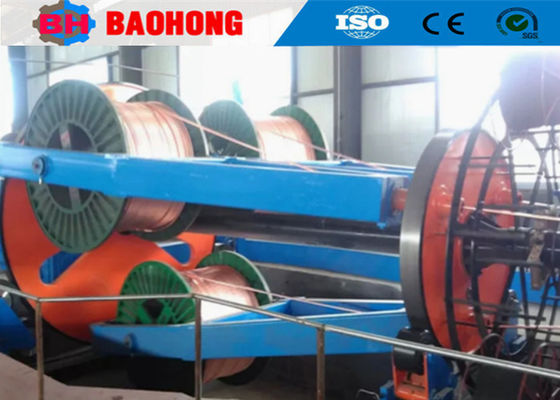

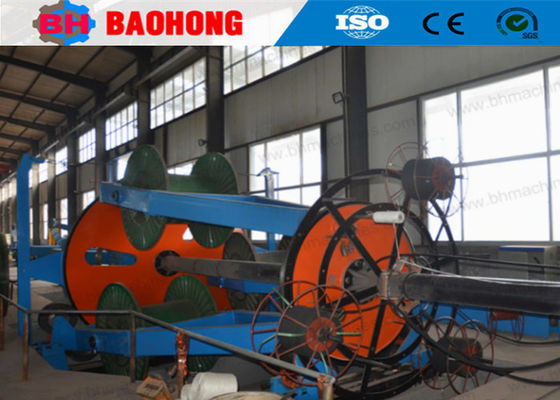

4. Photos
5. Packing photos
6. Our factory and introductions
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
