2 Insulated And 1 Bare Core Laying Machine For Aerial Bunched Cable

2 Insulated And 1 Bare Core Laying Machine For Aerial Bunched Cable

1. Introduction

This skip type laying up machine is used for cabling control cable, mining cable, rubber sheathed cable and ABC cable.

2. Process of production

2.1The big bending machine is used to bend the steel plate to the frame structure. Four frame structures share the circle equally, and they are    welded together with the big discs on the both sides. Also all the structures are welded to the center thick wall tube. The whole structure is              strong and beautiful.

2.2Then the whole structure will be machined on the big horizontal lathe. This horizontal lathe is big enough to machine every part in one step,      without changing one end to the other. This process will keep the concentricity of the whole structure, prolong the service life of bearings on          the both ends.

2.3Large planer type milling machine, which is used to mill the main chassis of the main stranding cage and take-up & pay-off chassis. The large planer type milling machine can ensure that each flat surfaces are machined in one time to keep the homogeneous height distribution of the surface machined by the milling machine. All of these will enable the whole machine runs smoothly.

3. Main specification

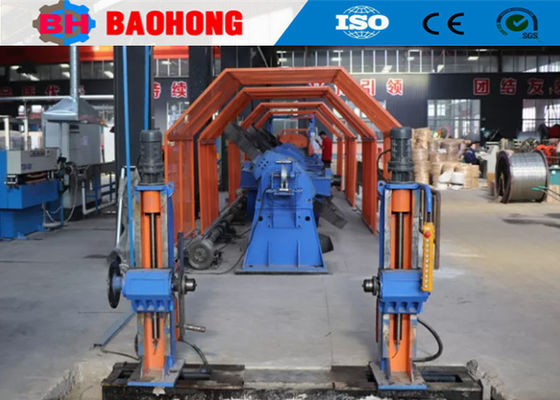

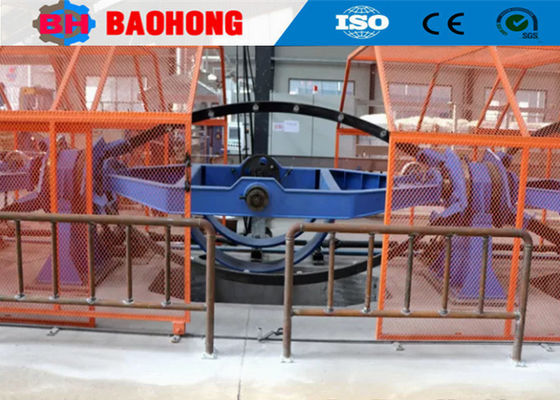

4. Photo

5. Packing photo


6. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
