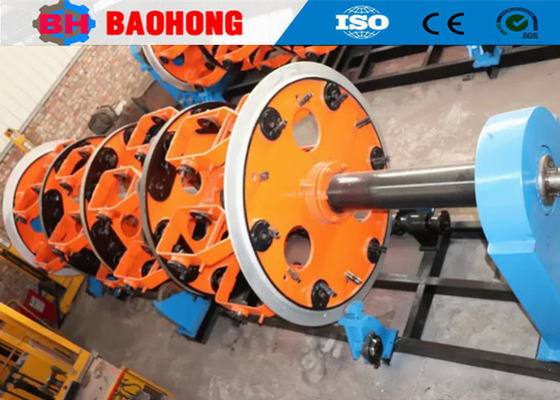

42+42/500 Steel Wire Cable Armouring Machine Planetary Gear Type

42+42/500 Steel Wire Cable Armouring Machine Planetary Gear Type​

1. Application
This machine is mainly used for armouring single or double steel wire around the cable, or manufacturing large section of steel wire ropes.

2. Main Component
Central pay-off strand, armouring hose, die holder,taping device,traction device,meter counter, take-up traverse device,transminssion system and electric control system.

3. Main features
3.1 The machine is suitable for stranding long length and section bare aluminum copper , aluminum alloy, aluminum cable steel reinforcing wires to product the following power cables. Sector shapped conductors,round compacted ,single core prespiralled.
3.2 A quarter of the way around the cage is lined with reels. Centralized side loading system can greatly improve efficiency, equipment with high power, high speed.
3.3 It driven by 36-stage gear-box,the tow wheels of double wheel capstan are overhung position supported on shafts. One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force reaches 15T.each reel is equipped with an advanced broken wire detector, allowing to stop the machine automatically in case of broken wire.

4. Technical parameters

5. Photos

6. Packing photo

7. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
