| Product Name: | Pneumatic Brake Wire Stranding Machine | Model: | JGG-400/50/630 |
|---|---|---|---|
| Type: | Tubular Type | Usage: | Tubular Type Stranding |
| Stranding Materials: | Cu, Al Wire And Insulated Cable Core. | Brake Way: | Pneumatic Brake |
| Machine Painting: | Customization | Warranty Time: | 12 Months |
| Highlight: | Pneumatic Brake Wire Stranding Machine,Insulated Wire Tubular Stranding Machine,Al Wire Tubular Stranding Machine |
||

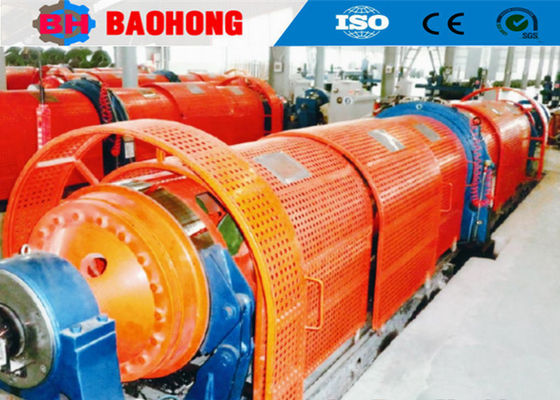

Tubular Type Pneumatic Brake Wire Stranding Machine For Insulated Cable
1. Usage
The tubular stranding machine is used for 1.2-40mm high carbon steel, stainless steel,copper,aluminum and other metal cable products twist
and rope.
2. Components
The electric wire cable making machine is composited of Central pay-off, tubular host, taping machine (optional), traction device, take-up and traversing stand, and electrical control system.
3. Technical datas
|
Model (Tubular Stranding Machine)
|
JGG-400 | JGG-500 | JGG-630 | |
| Diameter of single wire |
Copper
|
φ1.2-2.6 mm | φ1.4-4 mm | φ2-7 mm |
|
Aluminum
|
φ1.8-2.6 mm | φ1.8-4 mm | φ2-7 mm | |
|
Maximum stranded conductor OD
|
φ7 mm | φ10 mm | φ12 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm |
| 12 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm | |
| 18 Bobbin Stranding Cage | 44-334 mm | 44-338 mm | 82-620 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 600 r/min | 600 r/min | 400 r/min |
| 12 Bobbin Stranding Cage | 600 r/min | 500 r/min | 300 r/min | |
| 18 Bobbin Stranding Cage | 450 r/min | 400 r/min | 230 r/min | |
| Capstan | Capstan Wheel Diameter | φ600 mm | φ800 mm | φ1000 mm |
|
Maximum Haul-off Force
|
3T | 5T | 5T | |
|
Motor Power
|
22 KW | 30 KW | 37 KW | |
|
Bobbin Size
|
400 mm | 500 mm | 630 mm | |
|
Center Payoff Bobbin
|
400 mm | 500 mm | 630 mm | |
|
Take-up Bobbin
|
1250 mm | 1600 mm | 2000 mm | |
4. Photos
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
