| Product Name: | PLC Cable Laying Machine | Use For: | Laying Up |
|---|---|---|---|
| Take-up Reel: | 1600 Mm ;1800 Mm;2000 Mm;2500 Mm;3150 Mm | Materials: | PEX Cable, Plastic Cable, Power Cable |
| Max. Haul-off Force(630): | 10 T | Central Height: | 1000 Mm |
| Machine Color: | Optional | Guarantee Time: | 12 Months |
| Motor: | SIMENS | ||
| Highlight: | PLC Cable Laying Machine,1800mm Bobbins Cable Making Equipment,Stranding Cable Laying Machine |
||
PLC Cable Laying Machine 1800mm Bobbins Cable Making Equipment
1. Application
The machine is used for strand and lay-up large section, longer round, straight sector and pre-spiral sector power cables,it also can strand and lay-up the pre-spiral and non-pre-spiral cable core.
2. Components
2.1 The line is provided with back-twist, pre-twist, bobbin is clamped and released by motor.
2.2 The line adopt SIEMENS PLC to command and coordinate electric work. The electric control system is advance in technology, easy in operation, and reliable in running.
2.3 Highly productive lay up process with low energy consumption.
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |

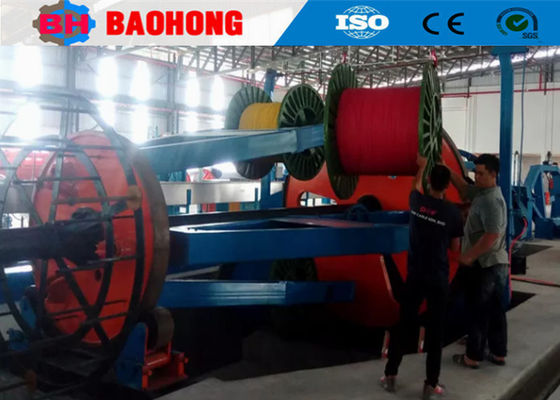

4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
