Electric Cables Control Skip Stranding Machine With 1400mm Capstan
1. Application
This machine is mainly used for control cable,min cable,and ABC cable stranding process,and also conductor cores twisting,with high speed and low noise.
2. Components
Central pay-off strand, mail bow type stranding cage,assembling die holder,filling rope stand, non-metallic taping machine,traction device,take-up with traverse,electrical control system,and safety protection system.
3. Technical datas
| Model (Skip Stranding Machine) |
JGB-630(500) |
JGB-700 |
JGB-800
|
| Diameter of single wire |
Copper |
φ1.8-5 mm |
φ2-5 mm |
φ2.5-5 mm |
| Aluminum |
φ2.0-5 mm |
φ2.5-5 mm |
φ3.0-5 mm |
Galvanized steel wire
|
φ1.0-4.0 mm |
φ1.2-4.0 mm |
φ1.5-4.0 mm |
Maximum stranded conductor OD
|
φ35-55 mm |
φ35-55 mm |
φ35-55 mm |
| Stranding Pitch |
6 Bobbin Stranding Cage |
31.1-235.0mm |
31.1-235.0mm |
31.1-235.0mm |
| Max. Rotating Speed |
6 Bobbin Stranding Cage |
1000 r/min |
800 r/min |
700 r/min |
| Capstan |
Capstan Wheel Diameter |
1200 mm |
1400 mm |
1400 mm |
| Maximum Haul-off Force |
10 T |
10 T |
12 T |
Motor Power
|
37 KW |
45 KW |
55 KW |
Bobbin Size
|
630*475*127 |
710*530*127 |
800*600*127 |
Center Payoff Bobbin
|
630*475*127 |
710*530*127 |
800*600*127 |
Take-up Bobbin
|
1250*950*80 |
1600*1180*80 |
1600*1180*80 |
Maximum Haul-off Linear Speed
|
235 m/min |
200 m/min |
170 m/min |
Central Height
|
1000 mm |
1000 mm |
1000 mm |

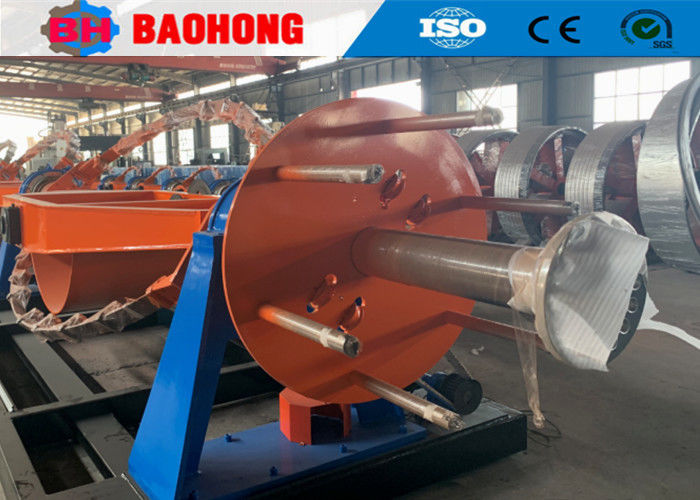

4. Photos
