Product Details:
Payment & Shipping Terms:
|
| Name: | 1250mm Drum Laying Up Machine | Bobbins: | 800 1000 1250 1400 1600 1800 2000 |
|---|---|---|---|
| Use For: | Cable Laying Up | Stranding Pitch(1000): | 200-2000 Mm |
| Capstan Wheel Diameter(630): | 1000 | Inverter Brand: | SIEMENS |
| Motor Brand: | SIEMENS | Color: | Optional |
| Warranty Period: | 1 Yeear | ||
| Highlight: | 1250mm Drum Laying Up Machine,High Precision Cable Production Equipment,60m/min Cable Laying Up Machine |
||

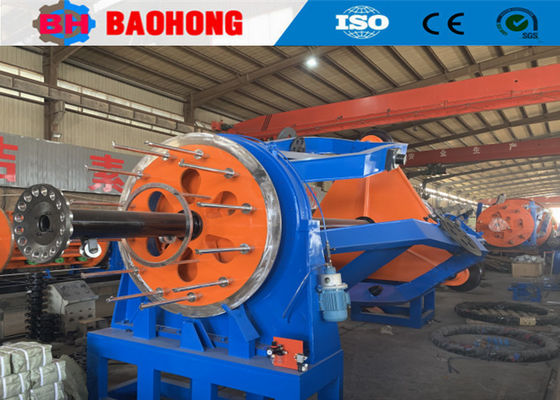

1250mm Drum Laying Up Machine High Precision Cable Production Equipment
1. Application
The Laying up Machine is used for cabling the multi core, rubber cables, plastic power cables, telephone cables, control cables, PVC cables, XLPE cables with or without steel armouring, mining cables, low and medium low voltage power cables.stranding the round cables, sector shaped cables with back twist or without back twist.
2. Features
2.1 The cage type cable laying-up machine is 100% back twisted and stranded.
2.2 Designed for laying up power conductors with 3-5 round cores and straight or sector shape cores.
2.3 Equipped with dual wheel pulling capstan when running small size cables or with haul off caterpillar for bigger power cables.
2.4 The machine is provided with HMI+PLC control system for pre-setting laying up pitch and for speed synchronization with the take up.
2.5 Independent motor driven rotating pay-off stands rotate synchronously with rotating take-up, can also rotate independently. Rotating take-up stand is supported by under rollers enhanced structure rigidity, reliability and stability of rotation.
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |
4. Photos
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
