| Product Name: | Planetary Stranding Machine With Back Twist | Condition: | New |
|---|---|---|---|
| Shape: | Planetary Shape | Reel Sizes: | 500 |
| Material: | Steel | Machine Color: | As Request |
| Center Height: | 1000 Mm | Warranty Time: | One Year Warranty |
| Highlight: | Cable Laying Planetary Stranding Machine,Steel Planetary Stranding Machine,Back Twist Planetary Stranding Machine |
||
500mm Bobbin Steel Planetary Stranding Machine With Back Twist
1. Usage
The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.
2. Main Characters
2.1 The bobbins in the cages can be loaded and unloaded individually or inegrally, and in the latter case, three options are offered: bottom- loading, top-loading and side- loading.
2.2 The bobbins in the cage are clamped pneumatically or by hands. In the latter case, the bobbins are clamped by turning the worm gears or hand wheels. Mechanical safe locking is provided for each system.
2.3 The payoff tension is controlled by mechanical friction or by air force. For the air force tension, the payoff tension is kept constant from full to shallow bobbin under the electric control system.
3. Configuration
Pay-off, mainframes of 6-reel section, 12-reelbsection, 18-reel, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.
4. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Diameter of single wire | Copper | φ1-1.6 mm | φ1-4 mm | φ1.2-5 mm | φ1.5-5 mm |
| Aluminum | φ1.2-2 mm | φ1.2-4 mm | φ1.4-5 mm | φ2.0-5 mm | |
| Maximum stranded conductor OD | φ14 mm | φ28 mm | φ35 mm | φ45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 | |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 | |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 | |
| Rotating Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min | |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min | |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T | |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW | |
| Bobbin Size | 315 mm | 400 mm | 500 mm | 630 mm | |
| Center Payoff Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm | |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm | |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1100 mm | |

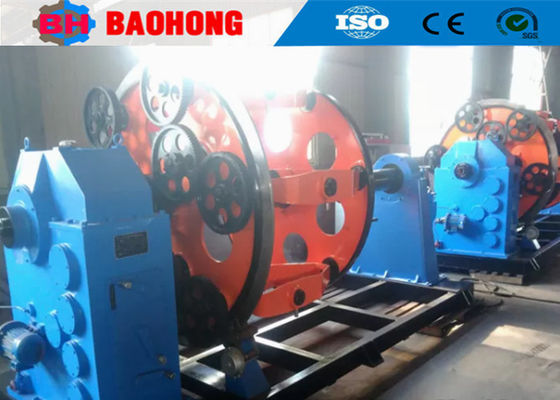

5. Photo
6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
