PLC Planetary Type Electric Wire Cable Making Machine With Multifunction
1. Usage
The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.
2. Main Character
2.1. High rigid, high speed and low inertia.
2.2.100% Back twist design insure that no abrasion damage while stranding.
2.3. Most advanced emergency stop device.
2.4. Various PLC electrics optional.
2.5. Constant Bobbin back tension achieved by positive device & Single bobbin rotation is electronically sensed for controlling the required tension.In addition,magetic tension control system is optional which is cheaper than the pheumatic mode.
2.6. Planetary stranding machine is qualified for any wire/cable processing job.
3. Configuration
Pay-off, mainframes of 6-reel, 12-reel , 18-reel section, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.
4. Technical parameters
| Model (Planetary Stranding Machine) |
JLY-315 |
JLY-400 |
JLY-500 |
JLY-630 |
| Diameter of single wire |
Copper |
φ1-1.6 mm |
φ1-4 mm |
φ1.2-5 mm |
φ1.5-5 mm |
| Aluminum |
φ1.2-2 mm |
φ1.2-4 mm |
φ1.4-5 mm |
φ2.0-5 mm |
| Maximum stranded conductor OD |
φ14 mm |
φ28 mm |
φ35 mm |
φ45 mm |
| Stranding Pitch |
6 Bobbin Stranding Cage |
26-435 |
39-695 |
44-770 |
48-840 |
| 12 Bobbin Stranding Cage |
30-526 |
43-774 |
47-858 |
50-928 |
| 18 Bobbin Stranding Cage |
34-639 |
47-858 |
55-1001 |
65-1201 |
| 24 Bobbin Stranding Cage |
38-749 |
51-940 |
63-1151 |
75-1601 |
| Rotating Speed |
6 Bobbin Stranding Cage |
218 r/min |
120 r/min |
106 r/min |
55 r/min |
| 12 Bobbin Stranding Cage |
118 r/min |
110 r/min |
97.5 r/min |
45 r/min |
| 18 Bobbin Stranding Cage |
108 r/min |
100 r/min |
82.9 r/min |
35 r/min |
| 24 Bobbin Stranding Cage |
98 r/min |
90 r/min |
74 r/min |
25 r/min |
| Capstan |
Capstan Wheel Diameter |
1000 mm |
1600 mm |
1800 mm |
2000 mm |
| Maximum Haul-off Force |
2T |
5T |
10T |
15T |
| Motor Power |
18.5 KW |
22 KW |
37 KW |
55 KW |
| Bobbin Size |
315 mm |
400 mm |
500 mm |
630 mm |
| Center Payoff Bobbin |
315 mm |
1250 mm |
1600 mm |
1600 mm |
| Take-up Bobbin |
1250 mm |
2000 mm |
2000 mm |
2500 mm |
| Maximum Haul-off Linear Speed |
25 m/min |
30 m/min |
34.7 m/min |
20 m/min |
| Central Height |
1000 mm |
1000 mm |
1000 mm |
1100 mm |
5. Photo

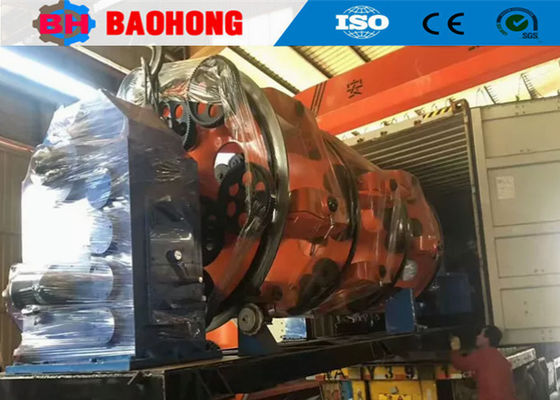

6. Packing photo
