| Name: | Plastic Corrugated Stainless Steel Wire Bobbin | Type: | Single Layer |
|---|---|---|---|
| Reels: | 500 550 630 710 800 | Material: | ABS,steel |
| Painting Color: | Optional | Use For: | Winding |
| Brand: | BH | Guarantee Time: | 1 Year |
| Highlight: | Steel Cable Reel Drum Spool,Stainless Steel Cable Reel Spool,Stainless Steel Wire Bobbin Spool |
||

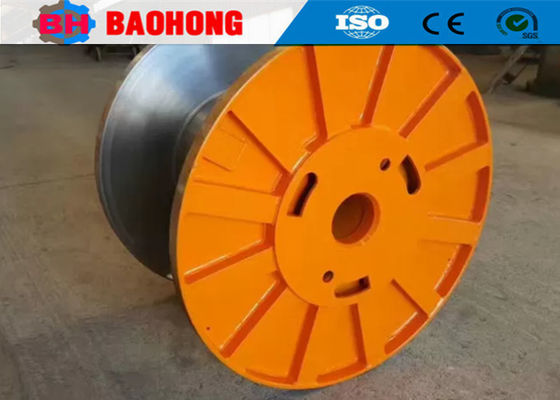

Steel Cable Reel Drum Spool Plastic Corrugated Stainless Steel Wire Bobbin
1. Usage
Corrugated reel is used for high voltage, middle and low voltage, XLPE, stranding, extrusion, cabling and armoring equipment.
2. Main Character
Forming by steel plate stamping and wielding ,high rigidity, high precision, steady in high-speed operations. Dimension either according to customer’s specifications or GB4004-83, JB/T8997.4-1999 and DIN46397, DIN46395, DIN46391.
3. Technical parameters
| Specification Type |
d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | t4 | α | Vdm³ |
| 315 | 315 | 160 | 60(71) | 36 | 8-16 | 40(71) | 236 | 200 | 10-15 | 60° | 9.2 |
| 355 | 355 | 140/180 | 90 (112) |
56 | 16-28 | 71 (112) |
265/215 | 224/180 | 15-20 | 18.7/13.2 | |
| 400 | 400 | 160/200 | 300/236 | 250/200 | 26.3/18.8 | ||||||
| 450 | 450 | 180/224 | 335/265 | 280/224 | 37.4/26.8 | ||||||
| 500 | 500 | 200/250 | 71 (140) |
375/300 | 315/250 | 51.9/36.8 | |||||
| 560 | 560 | 315/400 | 425/335 | 355/280 | 73.4/53.7 | ||||||
| 630 | 630 | 250/315 | 475/375 | 400/315 | 105.1/72.5 | ||||||
| 710 | 710 | 355 | 120 (160) |
80 | 28-40 | 160 | 530 | 450 | 20-40 | 133.6 | |
| 800 | 800 | 400 | 600 | 500 | 188.5 | ||||||
| 900 | 900 | 450 | 670 | 560 | 267.2 | ||||||
| 1000 | 1000 | 500 | 750 | 630 | 371.1 | ||||||
| 1120 | 1120 | 560 | 850 | 710 | 524.6 | ||||||
| 1250 | 1250 | 630 | 950 | 800 | 732.4 |
4. Photos
5. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., LTD., covers an area of 10,000 square meters, production workshop 8000 square meters. The company has 60 employees, including 10 R&D personnel. At present, the annual output value exceeds 10 million US dollars, and it has developed into one of the most important manufacturers of stranding machines in China.
