| Product Name: | OPGW Planetary Wire Armoring Machine | Application: | Cable Stranding |
|---|---|---|---|
| Materials: | Copper, Al Wire And Steel Wires | Max.stranded Conductor OD(500): | φ35 Mm |
| Max. Haul-off Linear Speed(630): | 20 M/min | HS Code: | 8479400000 |
| Equipment Painting: | Optional | Warranty Time: | 12 Months Guarantee |
| Highlight: | Copper Aluminum Wire Planetary Stranding Machine,Electric Cable Planetary Stranding Machine,Planetary Wire Armoring Machine |
||

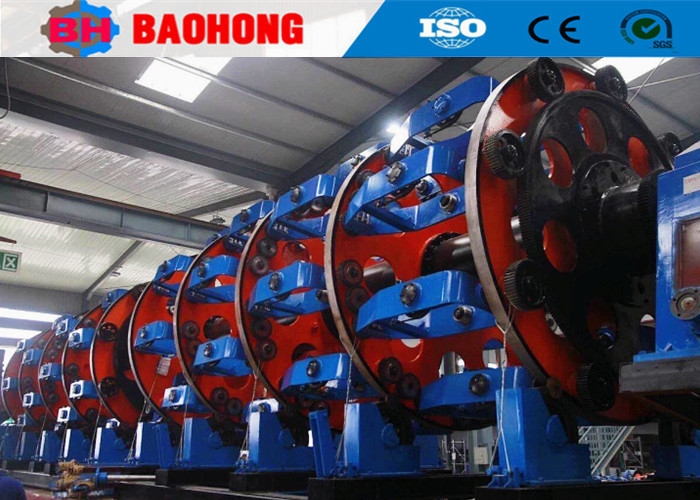

Copper Aluminum Wire Planetary Stranding Machine For Electric Cable
1. Usage
The machine is used for stranding Cu wires with backtwist,as well as stranding large-section soft copper conductors,rubber-insulated wires,and steel-wire armoring the cables.
2. Main Features
2.1 The main shaft is a seamless tube,supported by double-row roller bearings on both ends.
2.2 High rigid, high performance, high speed and low inertia.
2.3 Driven by 36-stage variable gear-box, dual hauling and dual active device. Natural wire distribution avoids abrasion damage when stranding.
2.4 The wire tension is controlled by Hysteresis brake,each wire tension is kept stable and balance through PLC control. The dog pin for the bobbin has spring inside,easily for loading and unloading the bobbin.
3. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Diameter of single wire | Copper | φ1-1.6 mm | φ1-4 mm | φ1.2-5 mm | φ1.5-5 mm |
| Aluminum | φ1.2-2 mm | φ1.2-4 mm | φ1.4-5 mm | φ2.0-5 mm | |
| Maximum stranded conductor OD | φ14 mm | φ28 mm | φ35 mm | φ45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 | |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 | |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 | |
| Rotating Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min | |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min | |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T | |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW | |
| Bobbin Size | 315 mm | 400 mm | 500 mm | 630 mm | |
| Center Payoff Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm | |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm | |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm |
|
|
4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
