Product Details:
Payment & Shipping Terms:
|
| Name: | High Speed Steel Cable Bobbin Empty Recycle Cable Drum | Application: | Winding |
|---|---|---|---|
| Shape: | Single Layer | Bobbin Sizes: | 500 550 630 710 800 |
| Materials: | Steel | Equipment Painting: | Customer Request |
| Guarantee Time: | 1 Year | ||
| Highlight: | High Speed Steel Cable Bobbin,Empty Recycle Cable Drum Reel,Recycle Steel Cable Bobbin |
||
High Speed Steel Cable Bobbin Empty Recycle Cable Drum
1. Usage
It is manufactured according to the GB4004-83.JB/T7600.3-94,DIN46395,it is made with the punched and compacted iron plate,and shaped with welding.With the big hardness and the lingt weight,it can fit for using in bunching,stranding,cabling,extrusion and the armouring machine.
2. Main Character
Forming by steel plate stamping and wielding ,high rigidity, high precision, steady in high-speed operations. Dimension either according to customer’s specifications or GB4004-83, JB/T8997.4-1999 and DIN46397, DIN46395, DIN46391.
3. Technical parameters
| Specification Type |
d1 | d2 | d3 | d4 | d5 | e | L1 | L2 | t4 | α | Vdm³ |
| 315 | 315 | 160 | 60(71) | 36 | 8-16 | 40(71) | 236 | 200 | 10-15 | 60° | 9.2 |
| 355 | 355 | 140/180 | 90 (112) |
56 | 16-28 | 71 (112) |
265/215 | 224/180 | 15-20 | 18.7/13.2 | |
| 400 | 400 | 160/200 | 300/236 | 250/200 | 26.3/18.8 | ||||||
| 450 | 450 | 180/224 | 335/265 | 280/224 | 37.4/26.8 | ||||||
| 500 | 500 | 200/250 | 71 (140) |
375/300 | 315/250 | 51.9/36.8 | |||||
| 560 | 560 | 315/400 | 425/335 | 355/280 | 73.4/53.7 | ||||||
| 630 | 630 | 250/315 | 475/375 | 400/315 | 105.1/72.5 | ||||||
| 710 | 710 | 355 | 120 (160) |
80 | 28-40 | 160 | 530 | 450 | 20-40 | 133.6 | |
| 800 | 800 | 400 | 600 | 500 | 188.5 | ||||||
| 900 | 900 | 450 | 670 | 560 | 267.2 | ||||||
| 1000 | 1000 | 500 | 750 | 630 | 371.1 | ||||||
| 1120 | 1120 | 560 | 850 | 710 | 524.6 | ||||||
| 1250 | 1250 | 630 | 950 | 800 | 732.4 |

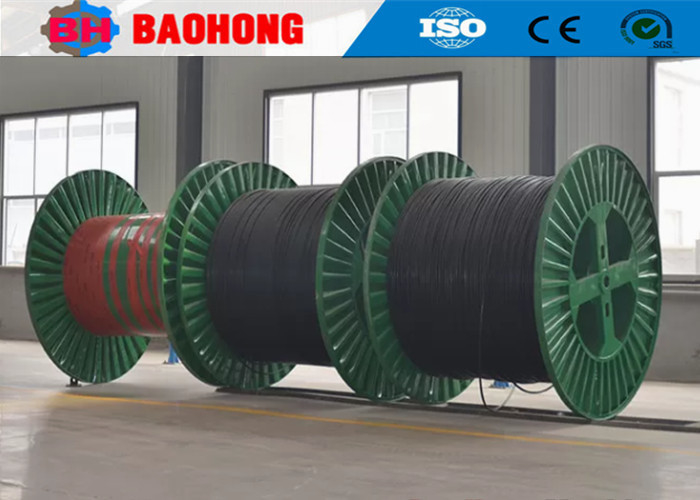

4. Photo
5. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, Baohong Electrical Machinery has been relying on the care and support of customers, committed to the research and development of stranding machine and laying-up machine, and has made great progress. At present, we have become the only factory in China that can develop the JLK rigid stranding machine series products into assembly line processing, and we have independently developed the JGB bow skip stranding production line, CGB bow skip cabling line and CLY high-speed cradle type laying-up line.
Now, Hejian Baohong Electrical Machinery Co., Ltd. covers an area of 10000 square meters, and the production workshop is 8000 square meters. The company currently has 60 employees, including 10 research and development personnel. At present, with an annual output value exceeding 10 million US dollars, it has developed into one of the most important stranding machine production enterprises in China.
