Armored Steel Wire Cable Stranding Machine PLC Control

High Quality Cable Steel Wire Armored Stranding Machine

1. Application
The machine is mainly used for the production of steel cored aluminum strand wire, stranding and pressing of sector conductor, stranding and drawing and pressing of round conductor.

2. Main components

2.1.Pay-off stand                                                     1set
2.2.Rigid strander                                                    1set each
2.3.Intelligent meter counter                                    1set
2.4.Strong double capstan                                       1set
2.5.Main motor + reducer                                         1set
2.6.Column type take-up stand with traverse           1set
2.7.Mechanical transmission system                        1set
2.8.Electric control system                                        1set
2.9.Wall type safety fence                                         3sets
2.10.Steel armour head +Inner tube device              1set

3. Technical parameters

4. Main components

4.1 Main power supply as per user’s request
4.2 Single phase control voltage: as per user’s request
4.3 Main low-voltage electrical components : Chint brand
4.4 Frequency converter: Siemens
4.5 Main motor: Siemens
4.6 Touch screen,PLC: Siemens
4.7 Bearing: HRB

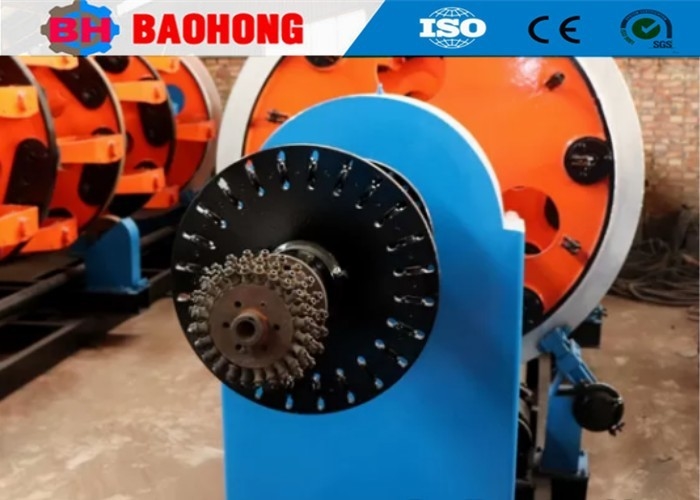

5. Photos



6. Packing photo


7. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.


8. FAQ
− Q: What can we offer our customers?

A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.

− Q: How long is the machine warranty?

A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)

− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.

We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
