| Product Name: | 630 Type Tubular Stranding Machine For Steel Wire | Usage: | Cable Stranding |
|---|---|---|---|
| Condition: | New | Bobbin Sizes: | 500 Mm, 630 Mm ,etc |
| Max.Stranded Conductor O/D (400): | φ7 Mm | Motor Brand: | SIEMENS |
| Equipment Color: | Optional | Warranty Time: | 1 Year |
| Highlight: | 630 Type Cable Making Machine,Industrial Cable Stranding Machine,Steel Rope Tubular Stranding Machine |
||

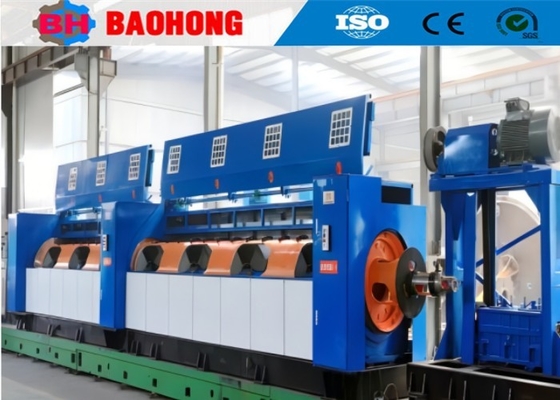

Industrial Cable Making Machine 630 Type Tubular Stranding Machine for Steel Wire
1. Application
This kind of machine is used to make copper stranded wire,steel-core aluminium stranding wire and steel rope. It also can be used to stranded steel wire and insuated wire.
1.1 Copper/Aluminum/Steel Wire Stranding
1.2 Steel Rope Stranding
1.3 OPGW Cables Stranding
2. Technical parameters
|
Model (Tubular Stranding Machine)
|
JGG-400 | JGG-500 | JGG-630 | |
| Diameter of single wire |
Copper
|
φ1.2-2.6 mm | φ1.4-4 mm | φ2-7 mm |
|
Aluminum
|
φ1.8-2.6 mm | φ1.8-4 mm | φ2-7 mm | |
|
Maximum stranded conductor OD
|
φ7 mm | φ10 mm | φ12 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm |
| 12 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm | |
| 18 Bobbin Stranding Cage | 44-334 mm | 44-338 mm | 82-620 mm | |
| Rotate Speed | 6 Bobbin Stranding Cage | 600 r/min | 600 r/min | 400 r/min |
| 12 Bobbin Stranding Cage | 600 r/min | 500 r/min | 300 r/min | |
| 18 Bobbin Stranding Cage | 450 r/min | 400 r/min | 230 r/min | |
| Capstan | Capstan Wheel Diameter | φ600 mm | φ800 mm | φ1000 mm |
|
Maximum Haul-off Force
|
3T | 5T | 5T | |
|
Motor Power
|
22 KW | 30 KW | 37 KW | |
|
Bobbin Size
|
400 mm | 500 mm | 630 mm | |
|
Center Payoff Bobbin
|
400 mm | 500 mm | 630 mm | |
|
Take-up Bobbin
|
1250 mm | 1600 mm | 2000 mm | |
3. Photos
4. Packing photos
5. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in Hejian Economic Development Zone, Hebei Province, is North China's largest stranding machine, laying-up machine professional manufacturers.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
