Product Details:
Payment & Shipping Terms:
|
| Name: | Cantilever Single Twist Bunching Machine | Usage: | Single Cable Stranding |
|---|---|---|---|
| Rotate Speed(630): | 1000 R/min | Take-up Tension: | Auto Tension,adjust Freely |
| PLC Brand: | SIEMENS | Motor Brand: | SIEMENS |
| Color: | According To Customer Request | Brand: | BH |
| Highlight: | Electrical Wire Single Twist Bunching Machine,Core Electrical Wire Bunching Machine,Single Twist Cable Bunching Machine |
||
Core Electric Electrical Wire Cantilever Single Twisting Bunching
1. Application
Single Twisting Bunching is used for PVC. PE cable, power wire, high frequency digital cable, assemble sets of timing tape.Which use program design, automatic calculation of stranding distance and traverse distance, PLC and touch screen control, realize automatic tracking calculation control after setting stranding distance, traverse distance, tape pitch and tape tension.
2. Performance
2.1. High rotate speed, main shaft is lubricated by thin oil, cool warning if oil not enough ,which can lower the temperature and the noise,extend the life of the machine.
2.2. Use synchronous belt drive.
2.3. Change guide wheel to change lay distance, easy to operate.
2.4. Pneumatic pressurized brake device
3. Technical parameters
|
Model
|
400-500 | 630 | 800 | 1000 | 1250 |
|
Pay-off bobbin(mm)
|
300-400mm | 400-500-630 | 400-500-630 | 400-500-630 | 400-500-630 |
|
take-up bobbin(mm)
|
500 | 630 | 800 | 1000 | 1250 |
|
Wire diameter(mm)
|
0.5- 2.0 (Soft structure) | 0.6- 3.0(Soft structure) | 0.6-3.0(Soft structure) | 1.0-5.0 (Soft structure) | 1.0-5.0 (Soft structure) |
|
Max twist diameter(mm)
|
Φ6 | Φ15 | Φ20 | Φ25 | Φ30 |
|
Lay length(mm)
|
13-80 | 20-200 | 30-300 | 30-350 | 30-350 |
|
Rotate speed(RPM)
|
850 | 1000 | 800 | 800 | 500 |
|
Take-up tension
|
Auto tension,adjust freely | ||||
|
Traverse method
|
According to bobbin speed reciprocating movement to adjust | ||||
|
Traverse pitch(mm)
|
2.5-10 | 2-12 | 3-20 | 3-30 | 3-30 |

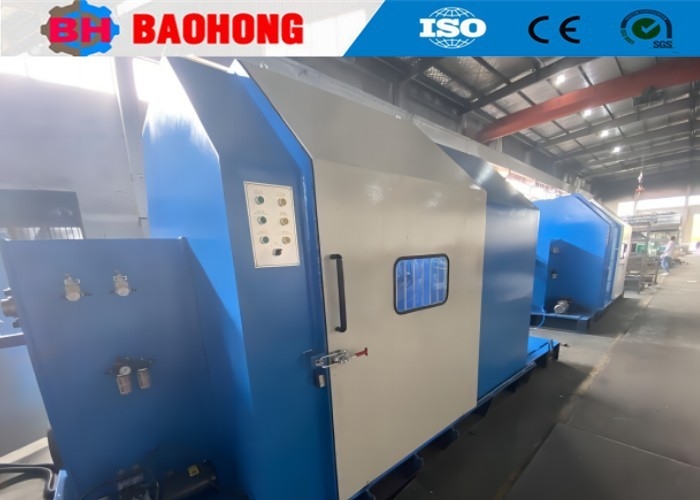

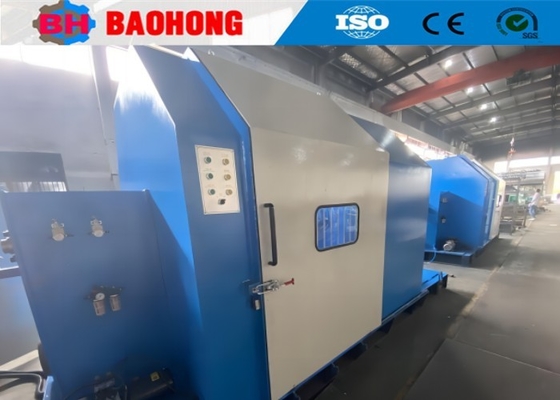

4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
7. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
