| Product Name: | Tubular Equipment Machines For Conductor Stranding | Shape: | Tubular Type |
|---|---|---|---|
| Usage: | Wire Stranding | Materials: | Copper Wire, Al Wire And Insulated Cable Core. |
| Reels: | 200 Mm, 250 Mm, 315 Mm, 400 Mm, 500 Mm, 630 Mm, 800 Mm, 1000 Mm, 1250 Mm | Brake Way: | Pneumatic Brake |
| Equipment Painting: | Optional | Guarantee Time: | 1 Year |
| Highlight: | Pneumatic Brake Tubular Strander,Conductor Tubular Strander Equipment,Copper Wire Tubular Machine 250mm |
||
Tubular Equipment Machines for Conductor Stranding
1. Application
The tubular stranding machine is used for copper wire, aluminum wire and insulated cable core.Tubular strander stranding with back twist,and wire break alarm signal is transmitted by pulse, which is accurate and efficient.
2. Features
2.1 The whole tubular is treated by high temperature annealing and stress relieving, it is not easy to be deformed after long-term use, and has a long service life.
2.2 The tubular is dynamically balanced as a whole part to increase the rotation speed of the tubular and can run smoothly with low noise.
2.3 Bearings at both ends of the tubular are for the main supporting, and the middle of the tubular is supported by a large bearing. The middle bearing is lubricated by an oil pump. It runs smoothly, with low noise, is not easy to wear and deform, and has a long service life.
2.4 The tubular is with a pneumatic braking system.
3. Technical parameters
|
Model (Tubular Stranding Machine)
|
JGG-400 | JGG-500 | JGG-630 | |
| Diameter of single wire |
Copper
|
φ1.2-2.6 mm | φ1.4-4 mm | φ2-7 mm |
|
Aluminum
|
φ1.8-2.6 mm | φ1.8-4 mm | φ2-7 mm | |
|
Maximum stranded conductor OD
|
φ7 mm | φ10 mm | φ12 mm | |
| Stranding Pitch |
6 Bobbin Stranding Cage
|
37-281 mm | 44-338 mm | 82-620 mm |
|
12 Bobbin Stranding Cage
|
37-281 mm | 44-338 mm | 82-620 mm | |
|
18 Bobbin Stranding Cage
|
44-334 mm | 44-338 mm | 82-620 mm | |
| Rotating Speed |
6 Bobbin Stranding Cage
|
600 r/min | 600 r/min | 400 r/min |
|
12 Bobbin Stranding Cage
|
600 r/min | 500 r/min | 300 r/min | |
|
18 Bobbin Stranding Cage
|
450 r/min | 400 r/min | 230 r/min | |
| Capstan |
Capstan Wheel Diameter
|
φ600 mm | φ800 mm | φ1000 mm |
|
Maximum Haul-off Force
|
3T | 5T | 5T | |
|
Motor Power
|
22 KW | 30 KW | 37 KW | |
|
Bobbin Size
|
400 mm | 500 mm | 630 mm | |
|
Center Payoff Bobbin
|
400 mm | 500 mm | 630 mm | |
|
Take-up Bobbin
|
1250 mm | 1600 mm | 2000 mm | |

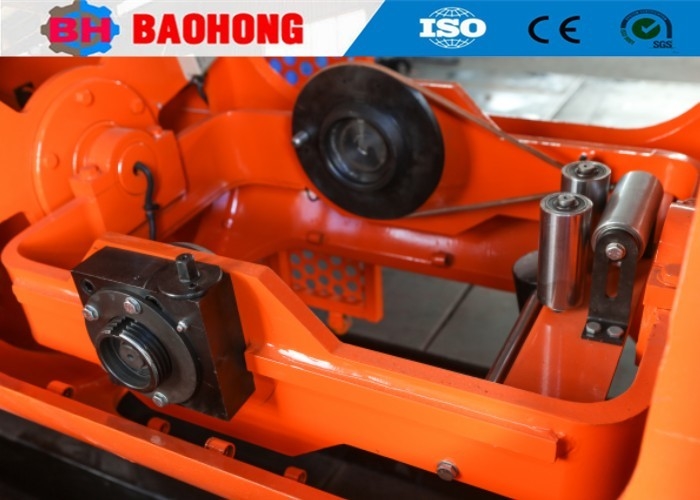

4. Photos
5. Packing photos
6. Our factory and introductions
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
