| Product Name: | Cheap Price Small Tubular Stranding Machine | Model: | JGG-400/JGG-500/JGG-630 |
|---|---|---|---|
| Use For: | Wire Stranding | Type: | Tubular Shape |
| Material: | Copper, Al,Steel Wire | PLC: | SIEMENS |
| Guarantee Time: | 1 Year | Color: | Customized |
| Usage: | Stranding Copper Wire, Aluminum Wire, Galvanized Soft Wire | ||
| Highlight: | Small Tubular Stranding Machine,JGG-400 Tubular Stranding Machine,Wire Stranding Tubular Machine |
||
Cheap Price Small Tubular Stranding Machine
1. Application
2. Feature
2.1 The tubular body is in a whole with little radial run out. It's supported on the bearing on both ends, and runs at a very low noise.
2.2 Bobbin is clamped by disc springs and released by pneumatic device.
2.3 It can estimate the breakage signal of any bobbin in each stranding cage accurately by using the digital quantity scanning, and the breakage position can be shown on the touching screen
2.4 The machine adopts PLC control the whole line. The electrical control system is advance in technology, easy in operation, reliable in running.
3. Main parts
3.1 Column type pay-off stand 1 set
3.2 Tubular 1 set
3.3 Assembly die holder 1 set
3.4 Meter counter 1 set
3.5 36 stage speed gearbox 1 set
3.6 Dual capstan 1 set
3.7 Column type take-up stand with traversing 1 set
3.8 Mechanized transmission system 1 set
3.9 Electric control system 1 set
3.10 Safety protection cover 1 set
4. Technical parameters
|
Model (Tubular Stranding Machine)
|
JGG-400 | JGG-500 | JGG-630 | |
| Diameter of single wire |
Copper
|
φ1.2-2.6 mm | φ1.4-4 mm | φ2-7 mm |
|
Aluminum
|
φ1.8-2.6 mm | φ1.8-4 mm | φ2-7 mm | |
|
Maximum stranded conductor OD
|
φ7 mm | φ10 mm | φ12 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm |
| 12 Bobbin Stranding Cage | 37-281 mm | 44-338 mm | 82-620 mm | |
| 18 Bobbin Stranding Cage | 44-334 mm | 44-338 mm | 82-620 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 600 r/min | 600 r/min | 400 r/min |
| 12 Bobbin Stranding Cage | 600 r/min | 500 r/min | 300 r/min | |
| 18 Bobbin Stranding Cage | 450 r/min | 400 r/min | 230 r/min | |
| Capstan | Capstan Wheel Diameter | φ600 mm | φ800 mm | φ1000 mm |
|
Maximum Haul-off Force
|
3T | 5T | 5T | |
|
Motor Power
|
22 KW | 30 KW | 37 KW | |
|
Bobbin Size
|
400 mm | 500 mm | 630 mm | |
|
Center Payoff Bobbin
|
400 mm | 500 mm | 630 mm | |
|
Take-up Bobbin
|
1250 mm | 1600 mm | 2000 mm | |
5. Photo

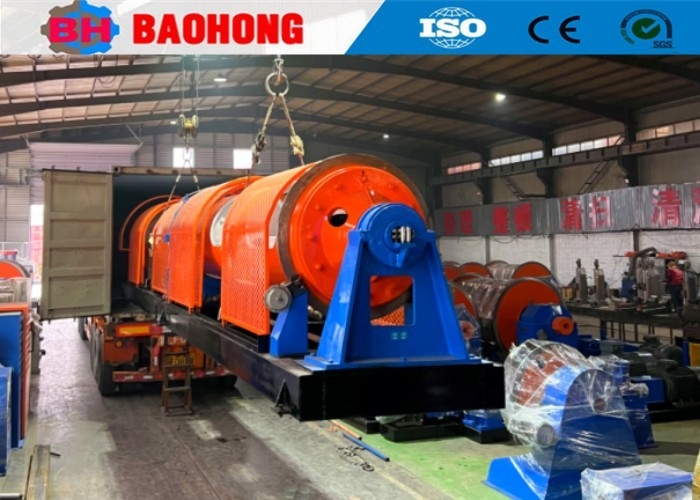

6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
