1600-1+3 Cradle type laying-up machine
1. Application
This machine is mainly used for round or sector stranding and laying up of power cables within 5 cores.
2. Characteristic
The programmable controller and touch screen of the machine control the start of whole machine each part motor. The pitch is set on the man-machine interface, which is accurate, fast and convenient.
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbins | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |

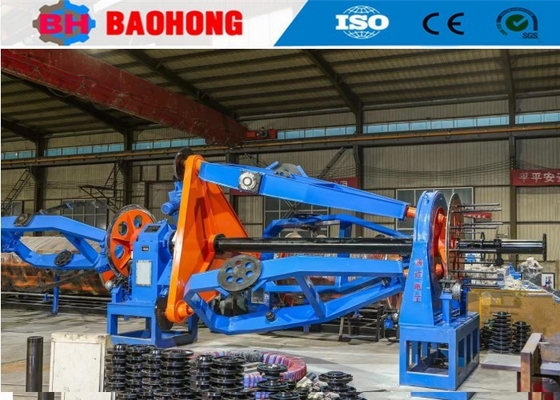

4. Photos
5. Packing photos
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Located in Hejian Economic Development Zone, Hebei Province, our company is the largest professional manufacturer of stranding machine and laying-up machine in North China.
Since 2006, Baohong Electrical Machinery has been relying on the care and support of customers, committed to the research and development of stranding machine and laying-up machine, and has made great progress. Now, we have become the only assembly line processing factory in China that can develop and produce JLK rigid stranding series. We have also independently developed JGB bow skip stranding line, CGB Bow skip cable line and CLY high speed cradle cable laying-up line.
Now, Hejian Baohong Electrical Machinery Co., LTD., covers an area of 10,000 square meters, production workshop of 8,000 square meters. Our company has 60 employees, including 10 R&D staff. With an annual output of more than 10 million US dollars, the company has developed into one of the most important stranding manufacturers in China.
