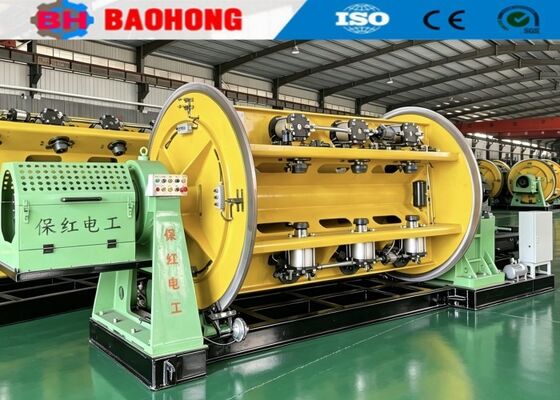

500/630/710 Rigid Type Stranding Machine For Copper Wire And Cable

500/630/710 Rigid Type Stranding Machine For Copper Wire And Cable

1. Application

The machine is mainly used for stranding and compacting of copper or aluminum sector or round conductor, as well as pre-spiral sectorconductor etc.For example, AAC, AAAC, ACSR, copper conductor from 15 sqmm to 1500 sqmm aluminum and copper conductor. It also used to produce steel wire armoring layers.

2. Main component

2.1 Pay-off                                                                                       1set

2.2 Rigid strander                                                                            each reel 1set

2.3 Compacting and Assembly die holder                                       1set

2.4 Concentric taping machine                                                        1set

2.5 Meter counter                                                                            1set

2.6 Capstan                                                                                     1set

2.7 Traversing stand                                                                        1set

2.8 Column type take-up                                                                  1set

2.9 Electric control cabinet (main cabinet and operation cabinet)    1 set each

3. Features

3.1 We customize this cage type wire stranding machine according to customer's requirements.

3.2 The whole structure will be machined on a large horizontal lathe.

3.3 Efficient and fast. The maximum speed of the cage is 253 RPM. Maximum line speed of 62.3 m/min.

3.4 Double - wheel capstan of inclined design are suitable for heavy compaction loads.

3.5 Cage disc type pneumatic brake.

3.6 PLC (Optional).

4. Technical Parameters

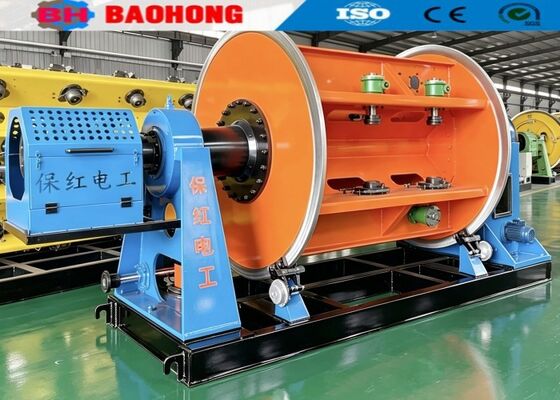

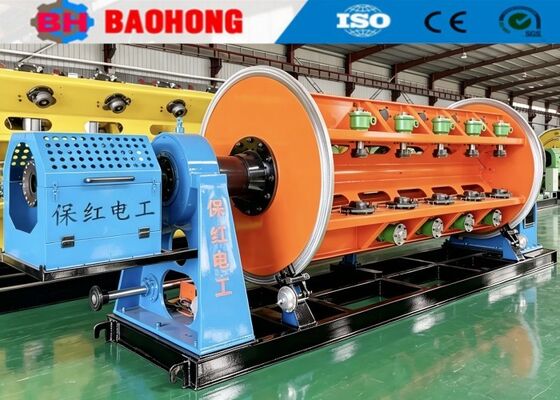

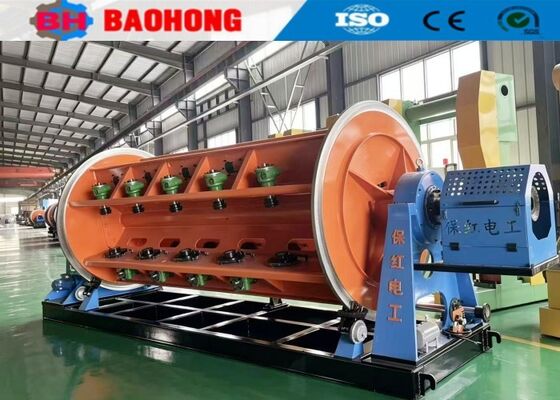

5. Photos

6. Packing photo

7. Our factory and company introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd. covers an area of 10,000 square meters, production workshop 8000 square meters. The company has 60 employees, including 10 R&D personnel. With annual production of more than $10 million, the company has developed into one of the most important stranding manufacturers in China.
