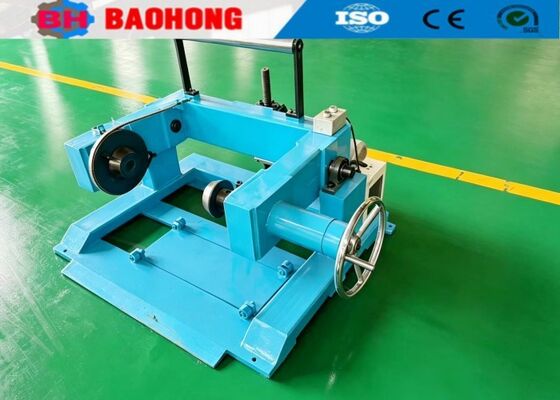

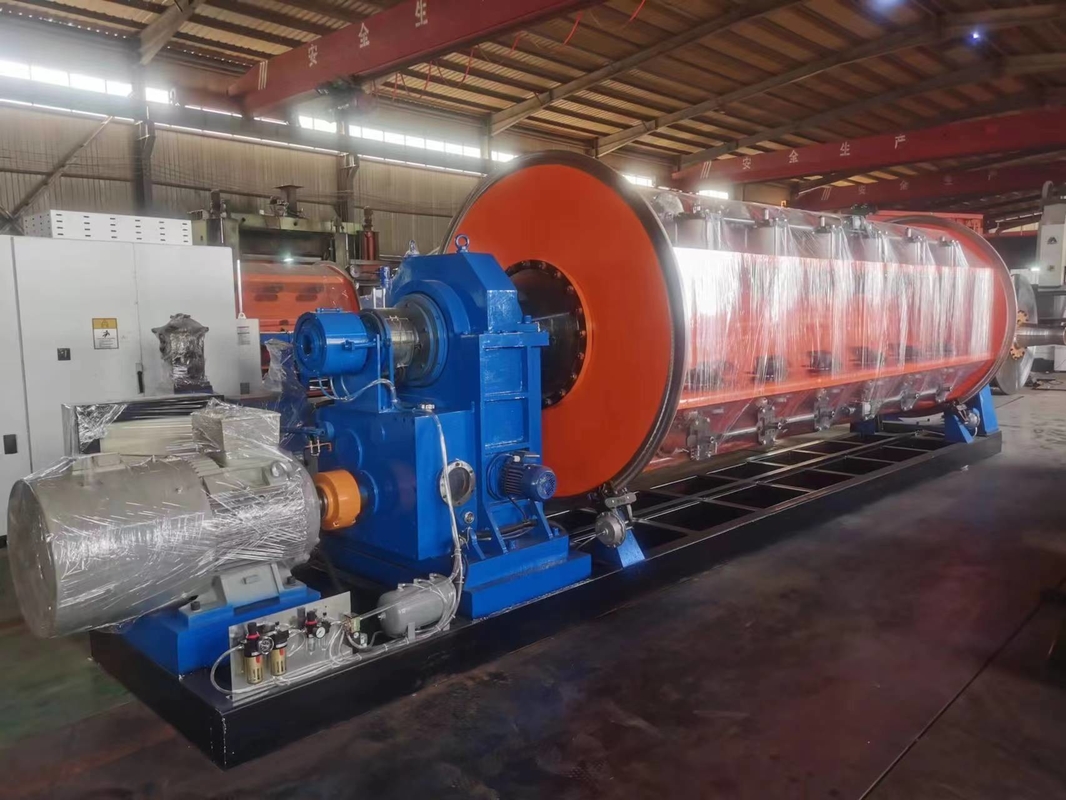

JLK-6+12+18+24/500 Rigid Stranding Machine

It is mainly used for stranding and pressing of sector conductors, stranding, drawing and pressing of round conductors, and stranding and manufacturing of large square steel cored aluminum strand.

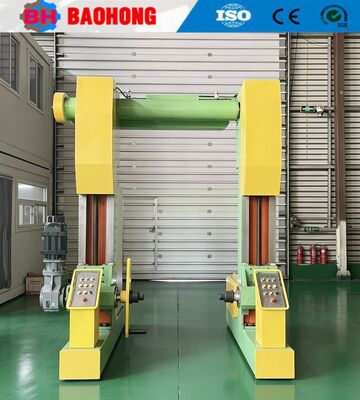

2.1Ø 500-630 central pay off stand                            1 set

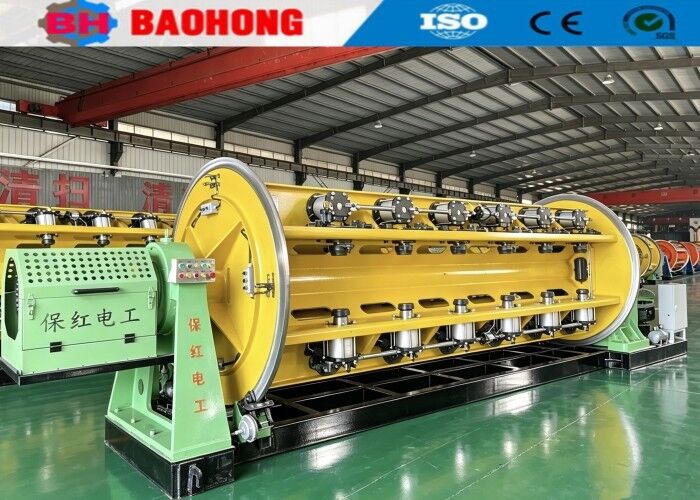

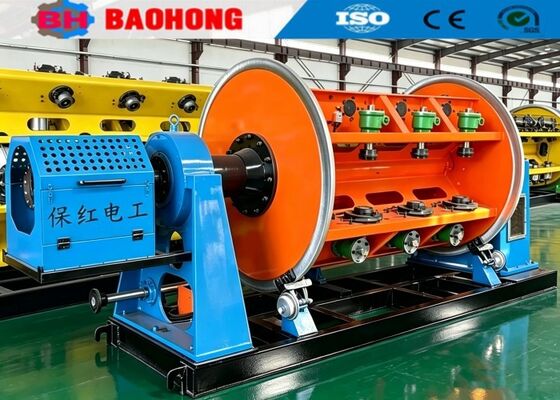

2.26B,12B ,18B,24B Rigid strander                    1set each

2.3Wire assembly compressing                                  4sets

2.4Meter counter                                                         1set

2.5Ø2000 double initiative capstan                             1 set

2.6Ø2500 take-up stand with traverse                        1set

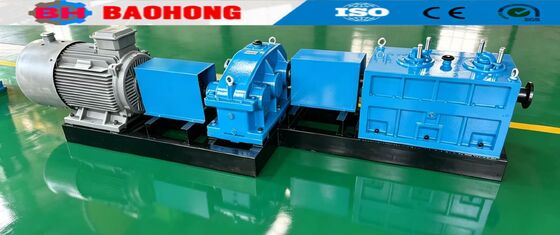

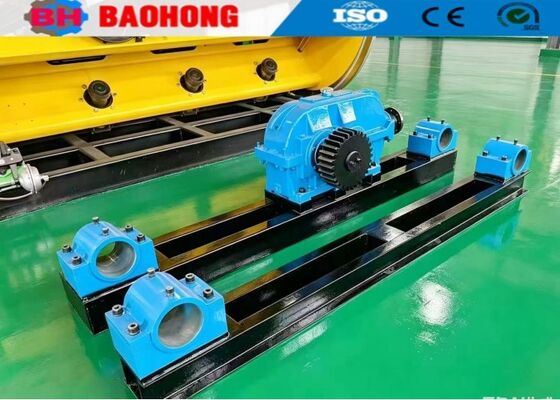

2.7Transmission system                                              1set

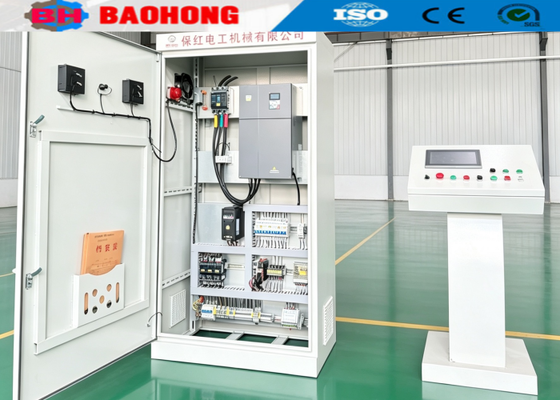

2.8Electric control system                                            1set

2.9Safety protection device (push-pull safety cover)   1set

2.10Ground shaft safety cover                                     1set

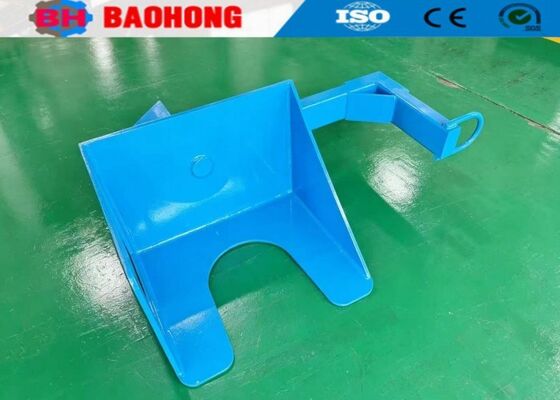

2.11Reel loading spreader                                           1set

2.12Pneumatic wrench                                                 1set

3. Features
3.1The machine is equipped with man-machine interface, and all operating parameters can be displayed and set in real time, which is intuitive and convenient.

3.2The actual rotating speed, capstan linear speed and other operating parameters of each strander can be displayed visually.

3.3The meter wheel is connected with the main control cabinet to set the meter for stopping.

3.4The disconnection alarm signal is transmitted wirelessly to effectively avoid confusion or failure of the transmission wire.

3.5Adopt cabinet type touch screen operation desk , which is convenient for operation and beautiful in form.

4. Technical Parameters

4.1Stranded single wire diameter

Copper wire                      Φ1.5～Φ5.0mm

Aluminum wire                  Φ1.8～Φ5.0mm

4.2Max. stranding OD      Φ45mm
4.3Stranding pitch

6B                                     50-720mm

12B                                   77-866mm

18B                                   99-998mm

24B                                  110-1118mm

4.4Rotating speed

6B                                    330r/min

12B                                  308r/min

18B                                  275 r/min

24B                                  252r/min

4.5Max .capstan linear speed        85.45m/min
4.6Capstan wheel diameter           Ø2000mm
4.7Reel in cage                              PND500
4.8Central pay off reel size            PN100～PN1600
4.9Take up reel                              PN1600～PN2500
4.10Main motor power                   75kW(AC motor with inverter)
