| Product Name: | 500 Rigid Frame Type Strander | Material: | Cu,Al,Steel Wire |
|---|---|---|---|
| Usage: | Stranding Wire And Cable | Cage Rotate Speed (JLK-500): | 230.6 RPM |
| PLC Brand: | SIEMENS | HS CODE: | 847940 |
| Machine Color: | Customer Request | Warranty Time: | 1 Year Warranty |
| High Light: | rigid frame strander,rigid frame stranding machine |
||
500 Rigid Frame Type Strander Heavy Duty Frame High Efficiency Power Saving
1. Application
This machine is adopted to produce compact conductor of long bare aluminum wire, copper wires and ACSR,it is also used to produce sector compressed stranding conductor and round compressed drawing conductor.
2. Features
2.1.The machine is driven by 36 variable steps drive gear-box, with dual active, dual hauling capstan, its haul force is so strong , the wire distributing collar adopt natural wire distribution for preventing abrasion damage of wire cores when stranding.
2.2.Wire pay-off tension is controlled pneumatically to guarantee constant tension in full loaded bobbin or empty bobbin. There is a special automatic emergency stop device in case of wire break.
2.3.The device can control directly every pay-off bobbin in the cage .When wire-broken, the entire machine will automatically stop at once.the machine is suitable for long length, big across-area XLPE cable production.
3. Technical datas
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T | |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
| Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 | |
| Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 | |
| Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min | |

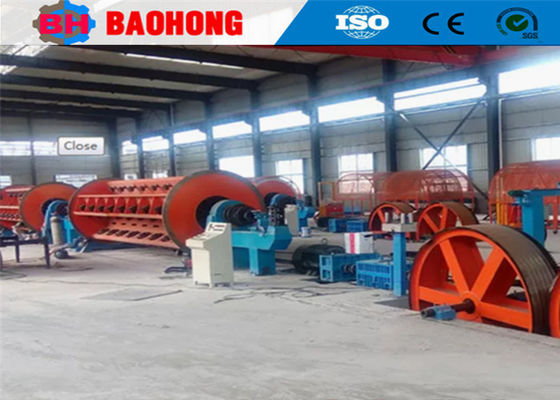

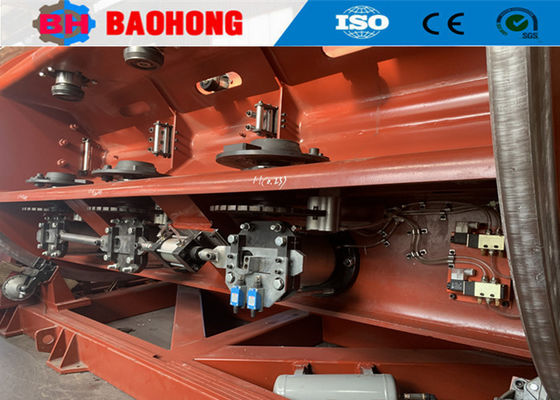

4. Photos
5. Packing photos
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
