| Product Name: | Wire Cable Rigid Frame Strander | Reel Sizes: | 500 / 630 / 710/720 |
|---|---|---|---|
| Wire Material: | Copper, Aluminum, Steel | Use For: | Stranding Wire And Cable |
| Type: | Automatic Machine | Motor Brand: | SIEMENS |
| Machine Painting: | Customization | Guarantee Period: | 12 Months Guarantee |
| High Light: | rigid frame strander,rigid frame stranding machine |
||
Wire Cable Rigid Frame Strander ACSR Goat Sheep Conductor 300 350 SQMM
1. Application
The machine is mainly used for stranding and compacting of copper or aluminum sector or round conductor, as well as pre-spiral sector
conductor etc.The big bending machine is used to bend the steel plate to the frame structure. Four frame structures share the circle equally, and they are welded together with the big discs on the both sides. Also all the structures are welded to the center thick wall tube. The whole structure is strong and beautiful.After welded process, the whole structure is annealed in the annealing furnace, which will remove the internal stresses.
2. Main component
2.1 Pay-off 1 set
2.2 Rigid strander 1 set
2.3 Compacting and Assembly die holder 1 set
2.4 Concentric taping machine 1 set
2.5 Meter counter 1 set
2.6 Capstan (with 36-step gearbox) 1 set
2.7 Traversing stand 1 set
2.8 Column type take-up 1 set
2.9 Motor + educer 1 set
2.10 Transmission shaft 1 set
2.11 Main cabinet and operation cabinet 1 set each
3. Features
3.1 We customise this cage type stranding machine in accordance with customers' requirements.
3.2 Heavy duty frame type rigid cage stranding machine, Cages supported on self aligning roller bearing on both ends. Totally enclosed gear, centralized lubricating system for bearing, drive to cages.
3.3 Bobbin group loading using hydraulic floor type. Side trolley loaders is also optional.
3.4 Slanted design double wheel capstan suitable for heavy compacting loads.
3.5 Disk type Pneumatic brake for Cage.
3.6 PLC Equipped, optional.
4. Technical Parameters
| Model (Rigid Stranding Machine) | JLK-500 | JLK-630 | JLK-710/720 | |
| Diameter of single wire | Copper | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm |
| Aluminum | φ1.5-5 mm | φ1.5-5 mm | φ1.5-5 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm |
| 12 Bobbin Stranding Cage | 40-719 mm | 51-896 mm | 54-963 mm | |
| 18 Bobbin Stranding Cage | 44-793 mm | 63-1056 mm | 57-1012 mm | |
| 24 Bobbin Stranding Cage | 51-924 mm | 71-1246 mm | 66-1190 mm | |
| 30 Bobbin Stranding Cage | 57-1028 mm | 87-1553 mm | 79-1403 mm | |
| Rotating Speed | 6 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min |
| 12 Bobbin Stranding Cage | 230.6 r/min | 180.1 r/min | 150.6 r/min | |
| 18 Bobbin Stranding Cage | 208.5 r/min | 155 r/min | 142.6 r/min | |
| 24 Bobbin Stranding Cage | 179 r/min | 130.1 r/min | 122.3 r/min | |
| 30 Bobbin Stranding Cage | 161.8 r/min | 115.9 r/min | 102.7 r/min | |
| Capstan | Capstan Wheel Diameter | 2000 mm | 2000 mm | 2000 mm |
| Maximum Haul-off Force | 30 T | 30 T | 40 T | |
| Pre-spiral Device | Pitch | 500-2500mm | 500-2500mm | 500-2500mm |
| Motor Power | 90-180 KW | 110-180 KW | 130-180 KW | |
| Bobbin Size | 500*375*127 | 630*475*127 | 710*530*127 | |
| Center Payoff Bobbin | 1600*800*80 | 1600*800*80 | 1600*800*80 | |
| Take-up Bobbin | 2500*1500*125 | 2500*1500*125 | 3150*1900*160 | |
| Maximum Haul-off Linear Speed | 69 m/min | 69 m/min | 62 m/min | |
| Central Height | 1000 mm | 1100 mm | 1100 mm | |

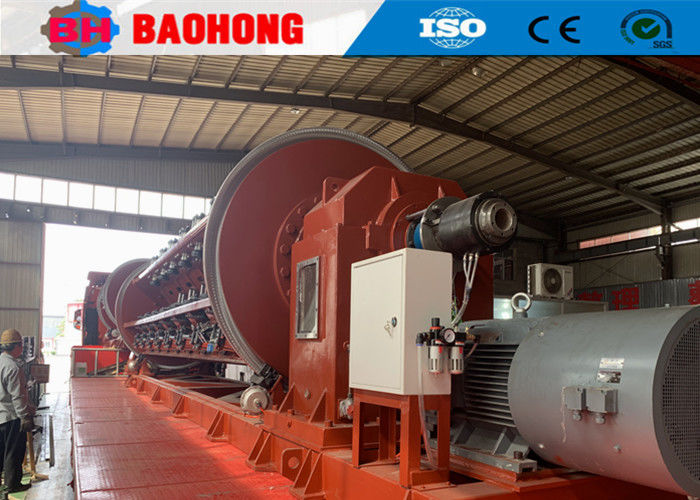

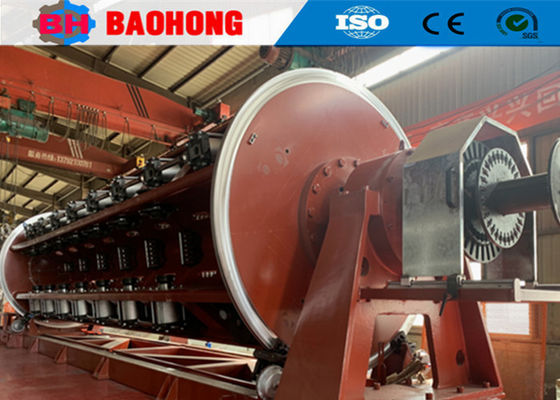

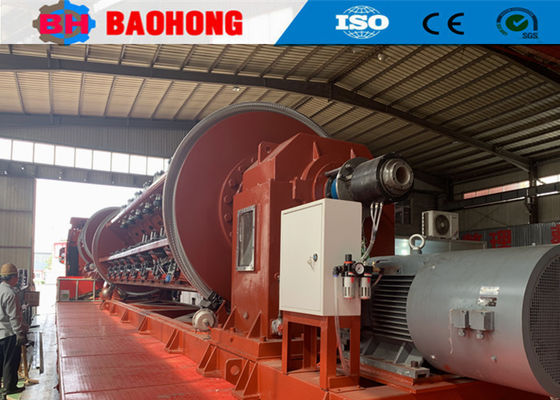

5. Photos
6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
