630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine

I'm Online Chat Now
Fast speed, 1000 RPM, I like the SKIP. Will Order one more soon. And also the rigid strander for 630 mm bobbin, 61 wires.

—— Mr Sam

Client is very satisfied. If you guys can make the delivery time shorter, that will be PERFECT!

—— Ms Liana

I'm really very happy to cooperate with you. Your machines have run for more than 3 years without any damage. The quality is good. Hope your business well!

—— Mr. Singh

Thanks for your great help for the new workshop. The rigid strander is good. I like it. Thank you very much.

—— Mr. Sandeep Jain

Good Machines, Good Price!

—— Mr. Raj Afzal

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine
630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine

Large Image :  630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: BH
Certification: ISO
Model Number: JLK 630(500)/12+18+24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: By Negotiation
Packaging Details: Standard Sea Worthy Package
Delivery Time: 115 days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 20 sets per month
Detailed Product Description
Name: Rigid Stranding Machine Usage: Stranding
Stranding Materials: Steel/Cu/Al Condition: New
Advantage: Direct Manufacturer Voltage: 380V, 50Hz, 3phase/customized
OEM OR NOT: OEM Machine Color: Optional
Highlight:

rigid frame strander

,

wire cable stranding machine

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine



1. Rigid Stranding Machine Usage

The rigid stranding machine is used for twisting and compacting the round or sector conductors, as well as pre-spiraling the split conductors. For example, AAC, AAAC, ACSR, copper conductor from 15 sqmm to 1500 sqmm aluminum and copper conductor. It also used to produce steel wire armoring layers.


The big bending machine is used to bend the steel plate to the frame structure. Four frame structures share the circle equally, and they are welded together with the big discs on the both sides. Also all the structures are welded to the center thick wall tube. The whole structure is strong and beautiful.



Then the whole structure will be machined on the big horizontal lathe. This horizontal lathe is big enough to machine every part in one step, without changing one end to the other. This process will keep the concentricity of the whole structure, prolong the service life of bearings on the both ends.



This double column vertical lathe is used to turn the big disc for cradle type laying-up machine and the capstan of the stranding machine. This machine can turn and burnish the grooves to protect the cable and keep the same hual-off force.



2. Technical Parameters

Model (Rigid Stranding Machine)



JLK-500 JLK-630 JLK-710/720
Diameter of single wire Copper φ1.5-5 mm φ1.5-5 mm  φ1.5-5 mm
Aluminum φ1.5-5 mm φ1.5-5 mm φ1.5-5 mm

Maximum stranded conductor OD



φ35-55 mm φ35-55 mm φ35-55 mm
Stranding Pitch 6 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
12 Bobbin Stranding Cage 40-719 mm 51-896 mm 54-963 mm
18 Bobbin Stranding Cage 44-793 mm 63-1056 mm 57-1012 mm
24 Bobbin Stranding Cage 51-924 mm 71-1246 mm 66-1190 mm
30 Bobbin Stranding Cage 57-1028 mm 87-1553 mm 79-1403 mm
Rotating Speed 6 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
12 Bobbin Stranding Cage 230.6 r/min 180.1 r/min 150.6 r/min
18 Bobbin Stranding Cage 208.5 r/min 155 r/min 142.6 r/min
24 Bobbin Stranding Cage 179 r/min 130.1 r/min 122.3 r/min
30 Bobbin Stranding Cage 161.8 r/min 115.9 r/min 102.7 r/min
Capstan Capstan Wheel Diameter 2000 mm 2000 mm 2000 mm
Maximum Haul-off Force 30 T 30 T 40 T
Pre-spiral Device Pitch 500-2500mm 500-2500mm 500-2500mm

Motor Power



90-180 KW 110-180 KW 130-180 KW

Bobbin Size



500*375*127 630*475*127 710*530*127

Center Payoff Bobbin



1600*800*80 1600*800*80 1600*800*80

Take-up Bobbin



2500*1500*125 2500*1500*125 3150*1900*160

Maximum Haul-off Linear Speed



69 m/min 69 m/min 62 m/min

Central Height



1000 mm 1100 mm 1100 mm


3. Photos

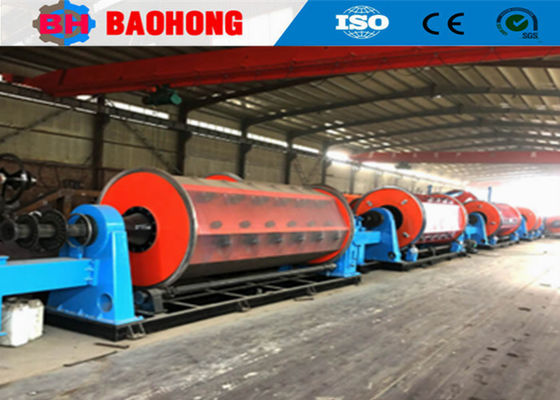

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine 0



630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine 1



4. Packing photos

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine 2



5. Our factory and company introduction

630/12+18+24 Rigid Stranding Machine , Wire Cable Making Machine 3

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.



Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.



Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
