Product Details:
Payment & Shipping Terms:
|
| Name: | PLC Aluminum Wire Cable Laying Up Machine | Bobbins: | 800 1000 1250 1400 1600 1800 2000 |
|---|---|---|---|
| Use For: | Laying Up | Stranding Pitch: | 200-2000 Mm |
| Capstan Wheel Diameter(630): | 1000 | Inverter Brand: | SIEMENS |
| Motor: | SIEMENS | Equipment Painting: | Optional |
| Shape: | Cradle | ||
| Highlight: | Aluminum Cable Laying Up Machine,PLC Laying Up Machine,800mm Pitch Laying Up Machine |
||

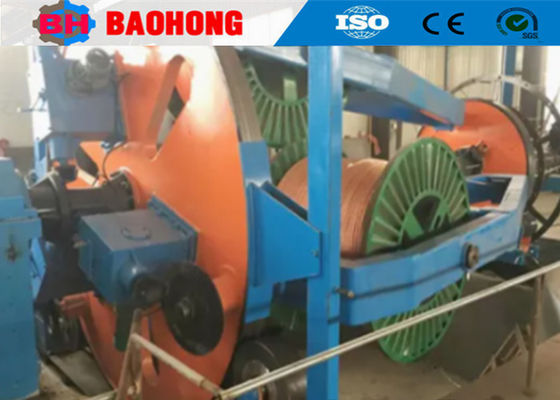

PLC Aluminum Wire Cable Laying Up Machine Cradle Type 800 mm Pitch
1. Usage
The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.
2. Feature
2.1.Tension control of the take-up can be set changed and displayed on the touch panel.
2.2. Pitch can be set, changed and displayed on touch panels, and also the laying (to right or left),point moving and fast moving,
can be set on touch panel.
2.3. No abrasion damage when stranding.
2.4. Most advanced emergency stop device.
2.5. Suitable for power cables and high compacted cross linking cables.
2.6. Siemens PLC control system, operating on touch screen.
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |
4. Photos
5. Packing photos
6. Our factory and introductions
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
