Product Details:
Payment & Shipping Terms:
|
| Product Name: | Bow Type Skip Stranding Machine | Bobbin Sizes: | 500 / 630/700/800 |
|---|---|---|---|
| Materials: | Copper, Al,Steel Wires | Rotation Speed: | 1000 RPM |
| Touch Screen: | SIEMENS | Automatic Grade: | Automatic |
| PLC Brand: | SIEMENS | Guarantee Time: | 12 Months |
| Highlight: | Bow Type Skip Stranding Machine,Rotating Skip Stranding Machine,1000RPM Rotating Skip Stranding Machine |
||

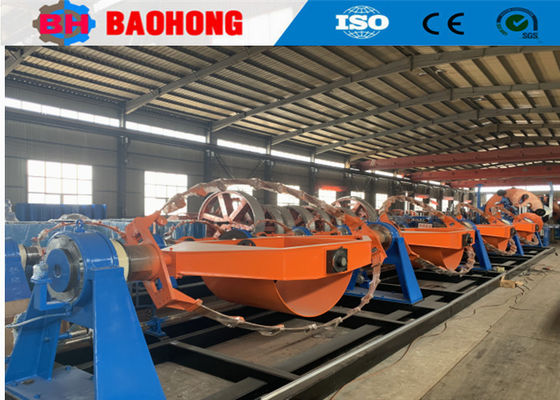

Rotating Bow Type Skip Stranding Machine Cable Making Equipment
This Strander is used for making 7 Strands or Multi Core Cables,cabling control cables, power cables,mining cables and rubber cables.
2. Component
Central pay-off stand, bow type stranding cage,assembling die holder,flling rope stand, non-metallic taping machine,traction device,take-up with traverse, electrical control system, and safety protection system.
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
| Center Payoff Bobbin | 630*475*127 | 710*530*127 | 800*600*127 | |
| Take-up Bobbin | 1250*950*80 | 1600*1180*80 | 1600*1180*80 | |
| Maximum Haul-off Linear Speed | 235 m/min | 200 m/min | 170 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | |
4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
