Product Details:
Payment & Shipping Terms:
|
| Name: | Wire And Cable Skip Stranding Machine | Bobbins: | 500 / 630/700/800 |
|---|---|---|---|
| Materials: | Cu Wire, Al Wire,Steel Wire | AC Inverter: | SIEMENS |
| Low Voltage Brand Electrical Parts: | Schneider | PLC: | SIEMENS |
| HS CODE: | 8479400000 | Machine Color: | Optional |
| High Light: | wire stranding machine,copper wire twisting machine |
||
High Efficient Wire and Cable Skip Stranding Machine For AAC Wasp Conductor
Hejian Baohong Electrical Machinery Co., Ltd., the process of production is as below:
The big bending machine is used to bend the steel plate to the frame structure. Four frame structures share the circle equally, and they are welded together with the big discs on the both sides. Also all the structures are welded to the center thick wall tube. The whole structure is strong and beautiful.
After welded process, the whole structure is annealed in the annealing furnace, which will remove the internal stresses.
Then the whole structure will be machined on the big horizontal lathe. This horizontal lathe is big enough to machine every part in one step, without changing one end to the other. This process will keep the concentricity of the whole structure,prolong the service life of bearings on the both ends.
The deep hole drilling and boring machine can turn the installed holes for the clamping devices. The holes for one pair of clamping devices are turned in one step, which keeps the both holes in the same concentricity. The concentricity will reducethe wire-break rate and prolong the bearing for the clamping device.
| Name | Unit | Data |
| Single wire diameter | mm |
Copper wire Φ1.5-Φ5.0 |
| The maximum strand diameter | mm | Φ16 |
| Max rotation speed of the bow | rpm | 1000 |
| Stranding pitch | mm | 31.1-235 mm ( 36 stage ) |
| Diameter of draught wheels | mm | Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) | kw | 55 |
| The specifications of the bobbin | / | d1: 630 mm L1: 475 mm d4: 127 mm |
| Take-up bobbin | / | PN630-PN1600 |

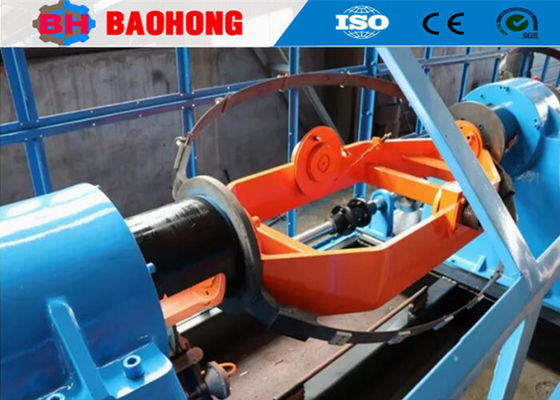

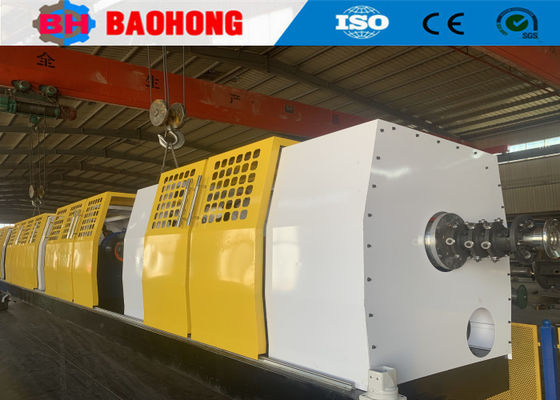

4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
