| Product Name: | Cable Twisting Machine | Usage: | Single Twisting |
|---|---|---|---|
| Rotation Speed(630): | 1000 | Tapping Type: | Center Wire-wrapping Or Side Wrapping |
| PLC,touch Screen Brand: | SIEMENS | Motor Brand: | SIEMENS |
| Warranty Time: | 12 Months | Color: | According To Customer Requirement |
| Highlight: | Cantilever Single Cable Twisting Machine,Wire Wrapping Cable Twisting Machine,PLC Control Cable Twisting Machine |
||
Wire Wrapping Cantilever Single Cable Twisting Machine PLC Control
1. Application
This series machine is suitable for control cable,communication cable,data cable,coaxial cable core wire and PE/PVC coated and center wrapping.
2. Performance and feature
This series of equipments consists of PLC proedure, frequency conversion speed-regulation control, pneumatic control. Cantilever cabling twist motion, bobbin capston take-up motion and bobbin reciprocating traverse motion are dual controlled by mechanical linkage and pneumatic linkage, thus, the excellent synchronous performance of the unit from starting normal operation, slow stop and emergency stop status, in addition, the stable twist pitch is also ensure with small errors at the same time.
3. Technical parameters
|
Model
|
400-500 | 630 | 800 | 1000 | 1250 |
|
Pay-off bobbin(mm)
|
300-400mm | 400-500-630 | 400-500-630 | 400-500-630 | 400-500-630 |
|
take-up bobbin(mm)
|
500 | 630 | 800 | 1000 | 1250 |
|
Wire diameter(mm)
|
0.5- 2.0 (Soft structure) | 0.6- 3.0(Soft structure) | 0.6-3.0(Soft structure) | 1.0-5.0 (Soft structure) | 1.0-5.0 (Soft structure) |
|
Max twist diameter(mm)
|
Φ6 | Φ15 | Φ20 | Φ25 | Φ30 |
|
Lay length(mm)
|
13-80 | 20-200 | 30-300 | 30-350 | 30-350 |
|
Rotate speed(RPM)
|
850 | 1000 | 800 | 800 | 500 |
|
Take-up tension
|
Auto tension,adjust freely | ||||
|
Traverse method
|
According to bobbin speed reciprocating movement to adjust | ||||
|
Traverse pitch(mm)
|
2.5-10 | 2-12 | 3-20 | 3-30 | 3-30 |

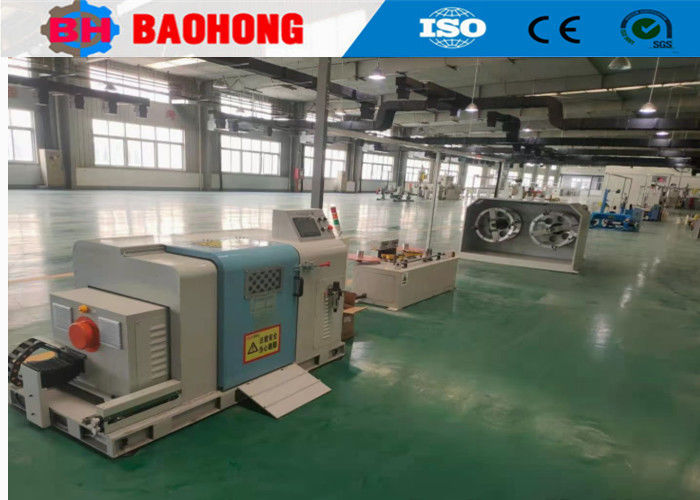

4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
