Product Details:
Payment & Shipping Terms:
|
| Name: | PLC Control Single Twist Cable Machine | Usage: | Single Twisting |
|---|---|---|---|
| Rotation Speed(630): | 1000 Rpm | Wrapping Type: | Center Wire-wrapping Or Side Wrapping |
| PLC Brand: | SIEMENS | Motor: | SIEMENS |
| Warranty Time: | 1 Year | Color: | Customization |
| Highlight: | PLC Control Single Twist Bunching Machine,Cable Single Twist Buncher,1000rpm Cable Bunching Machine |
||

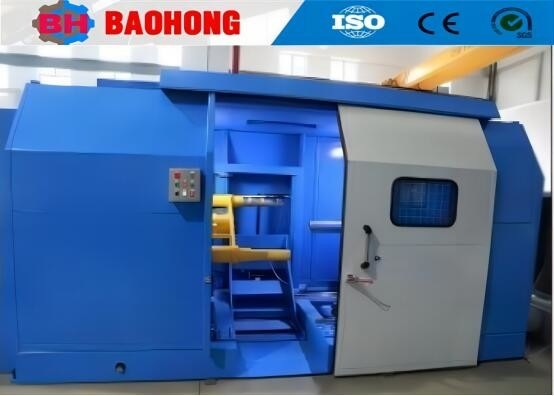

PLC Control Single Twist Cable Machine Center / Side Wrapping 1000rpm
1. Application
This cantilever type single cable stranding machine applied in the laying-up and stranding of power wire,telecommunications cable,control cable, CAT-5, CAT-6, CAT-7 date cable and other special core-wire,also can synchronously complete center wrapping or side wrapping.
2. Performance and feature
This series of equipments consists of PLC proedure, frequency conversion speed-regulation control, pneumatic control. Cantilever cabling twist motion, bobbin capston take-up motion and bobbin reciprocating traverse motion are dual controlled by mechanical linkage and pneumatic linkage, thus, the excellent synchronous performance of the unit from starting normal operation, slow stop and emergency stop status, in addition, the stable twist pitch is also ensure with small errors at the same time.
3. Technical parameters
|
Model
|
400-500 | 630 | 800 | 1000 | 1250 |
|
Pay-off bobbin(mm)
|
300-400mm | 400-500-630 | 400-500-630 | 400-500-630 | 400-500-630 |
|
take-up bobbin(mm)
|
500 | 630 | 800 | 1000 | 1250 |
|
Wire diameter(mm)
|
0.5- 2.0 (Soft structure) | 0.6- 3.0(Soft structure) | 0.6-3.0(Soft structure) | 1.0-5.0 (Soft structure) | 1.0-5.0 (Soft structure) |
|
Max twist diameter(mm)
|
Φ6 | Φ15 | Φ20 | Φ25 | Φ30 |
|
Lay length(mm)
|
13-80 | 20-200 | 30-300 | 30-350 | 30-350 |
|
Rotating speed(RPM)
|
850 | 1000 | 800 | 800 | 500 |
|
Take-up tension
|
Auto tension,adjust freely | ||||
|
Traverse method
|
According to bobbin speed reciprocating movement to adjust | ||||
|
Traverse pitch(mm)
|
2.5-10 | 2-12 | 3-20 | 3-30 | 3-30 |
4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, Baohong Electrical Machinery has been relying on the care and support of customers, committed to the research and development of stranding machine and laying-up machine, and has made great progress. Now, we have become the only assembly line processing factory in China that can develop and produce JLK rigid stranding series. We have also independently developed JGB bow skip stranding line, CGB Bow skip cable line and CLY high speed cradle cable laying-up line.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
