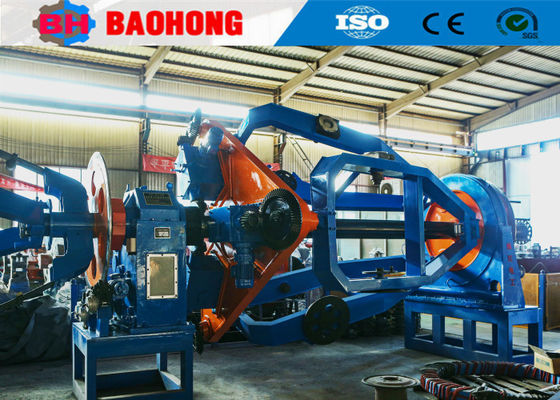

Cradle Type Laying Up Machine Cable Stranding 1400
1. Application
The machine is mainly used for cabling 3 to 7 core wires.It manufactures both back-twist round cable and sector shaped cables without back-twist.Also this type machine can be used for telephone cable,control cable,mine cable,plastic cable and crosslinked cable.Non metal wrapping and metal armoring could be done all the same time with stranding.
2. Types
2.1 Pay-off stand: Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500
2.2Take-up stand:Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200
2.3 Steel-wire pay-off stand:Φ500, Φ630
3. Technical parameters
| Model (Laying-up Machine) | CLY-630/3+3 | CLY-800/3+3 | CLY -1000/3+1+1 | CLY -1250/3+1+1 | CLY -1600/3+1+1 | |
| Diameter of single wire | φ5-10 mm | φ5-12 mm | φ8-20mm | φ8-25 mm | φ10-35 mm | |
| Maximum stranded conductor OD | φ30 mm | φ40 mm | φ63 mm | φ70 mm | φ80 mm | |
| Stranding Pitch | 50-800 mm | 95-1500 mm | 200-2000 mm | 420-3500 mm | 550-5176 mm | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1200 mm | 1800 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10 T | 12 T | 15 T | 20 T | 25 T | |
| Motor Power | 18.5 KW | 22 KW | 30 KW | 37 KW | 55 KW | |
| Bobbin Size | 630 mm | 800 mm | 1000 mm | 1250 mm | 1600 mm | |
| Take-up Bobbin | 1600 mm | 1800 mm | 2000 mm | 2500 mm | 3150 mm | |
| Maximum Haul-off Linear Speed | 60 m/min | 60 m/min | 34 m/min | 28 m/min | 21 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm | |
4. Photos
5. Packing photos
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
