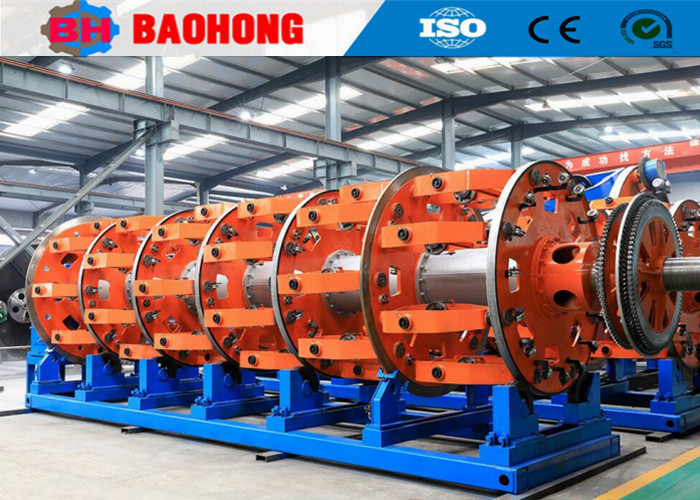

Spiral Strip Cable Armouring Machine 500 Mm NSK Bearing

Spiral Strip Cable Armouring Machine 500 Mm NSK Bearing

1. Application
This machine is mainly used for armouring single or double steel wire around the cable, or manufacturing large section of steel wire ropes.The machine adopts programmable controller and touch screen to command and coordinate the electrical working state of the whole machine each part. Process parameters can be displayed, set and modified on the touch screen. Variable frequency speed regulation device is used to control the starting and running speed of AC motor. The electric control system has advanced technology, convenient operation and reliable operation.

2. Main Components
Central pay-off strand, armouring hose, die holder,taping device,traction device,meter counter, take-up traverse device,transminssion system and electric control system.

3. Main features
3.1 Cabinet type touch screen operation desk, which is convenient for operation and beautiful in form.
3.2 Reinforcement is added to the front support of the main machine to increase stability.
3.3 The wire die base is connected to the front support of the main machine, which has stronger integration and better mechanical rigidity.

4. Technical parameters


5. Photos



6. Packing photo


7. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
