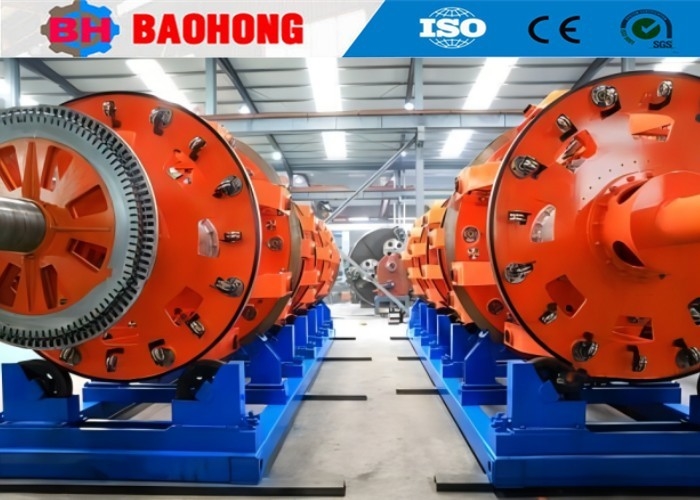

New Design Steel Wire Mesh Armouring Machine
1. Application
This machine is mainly used for the steel armour ,back twist ,and stranding cable.The equipment unit is equipped with man-machine interface, PLC + touch screen form, each operation parameter can be displayed and set, computer connection port is equipped to realize unified allocation of big data.
2. Main components
2.1 Pay off stand 1set
2.2 Stranding cage 1set
2.3 Wire assembly die 1set
2.4 Meter counter 1set
2.5 Dual wheel capstan 1set
2.6 Electric induction traverse 1set
2.7 Column type take up 1set
2.8 Electric cabinet 1set
2.9 Steel wire armouring head +inner tube 1set
3. Main components
4. Technical parameters
Model (Steel Wire Armoring Machine) |
JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Steel wire diameter | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | 1-2 .5 mm | |
| Maximum stranded OD | 40 mm | 55 mm | 60 mm | 70 mm | |
| Stranding Pitch | 24 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 |
36 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
42 Bobbin Stranding Cage |
38-752 | 51-942 | 63- 1144 | 500-4120 | |
| 48 Bobbin Stranding Cage | 38-752 | 51-942 | 63- 1144 | 500-4120 | |
| Rotating Speed | 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 68 .3 r/min | 55 r/min |
| 36 Bobbin Stranding Cage | 88 r/min | 80 r/min | 58 .3 r/min | 45 r/min | |
| 42 Bobbin Stranding Cage | 78 r/min | 70 r/min | 48 .3 r/min | 35 r/min | |
| 48 Bobbin Stranding Cage | 68 r/min | 60 r/min | 38 .3 r/min | 28 r/min | |
Capstan |
Capstan Wheel Diameter | 1600 mm | 2000 mm | 2000 mm | 2500 mm |
| Maximum Haul-off Force | 10T | 15T | 15T | 20T | |
Motor Power |
45 KW | 55 KW | 55 KW | 75 KW | |
Bobbin Size |
315 mm | 400 mm | 500 mm | 630 mm | |
Center Payoff Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Take- up Bobbin |
1250 mm | 2000 mm | 2000 mm | 3150 mm | |
Maximum Haul-off Linear Speed |
25 m/min | 30 m/min | 34 .7 m/min | 45 m/min | |
Central Height |
1000 mm | 1000 mm | 1000 mm | 1100 mm | |
5. Photos
6. Packing photo
7. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
