| Product Name: | Planetary Wire Cable Stranding Machine | Application: | Stranding |
|---|---|---|---|
| Drum Sizes: | 500,630 Etc | Materials: | Copper, Al Wire And Steel Wires |
| Max.stranded Conductor OD(500): | φ35 Mm | Max. Haul-off Linear Speed(630): | 20 M/min |
| Color: | According To Customer Request | Warranty Time: | 12 Months Guarantee |
| Highlight: | Cage Type Planetary Strander,20 M/Min Wire Cable Stranding Machine,Cage Type Planetary Wire Stranding Machine |
||

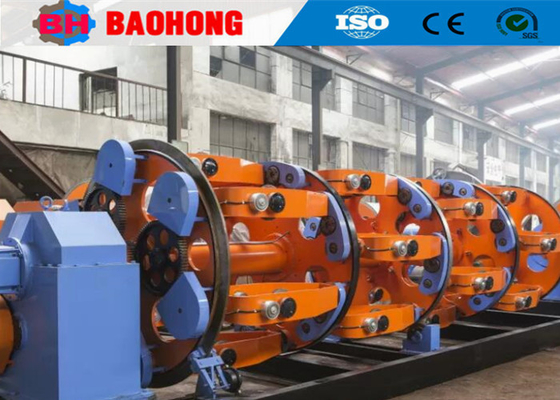

JLY500 / 30B Cage Type Planetary Wire Cable Stranding Machine 20 M/Min
1. Usage
This machine is mainly used for stranding copper aluminum wire, steel cored aluminum stranded wire and insulated wire core.
2. Main Components
2.1 2500 type pay off stand 1set
2.2. 30B Stranding cage 1set
2.3. Wire assembly die 1set
2.4. 500 Eccentric type taping machine 1set
2.5. 630 Armoring machine 1set
2.6. Meter counter 1set
2.7. 1600mm Dual wheel capstan +27 stage box 1set
2.8. 2500Electric induction traverse 1set
2.9. 2500 Column type take up 1set
2.10. 55 KW motor + reduction gearbox 1set
2.11. Electric control cabinet 2sets
2.12. Transmission system, transmission shaft, support tile box, universal coupling, etc
3. Technical parameters
| Model (Planetary Stranding Machine) | JLY-315 | JLY-400 | JLY-500 | JLY-630 | |
| Diameter of single wire | Copper | φ1-1.6 mm | φ1-4 mm | φ1.2-5 mm | φ1.5-5 mm |
| Aluminum | φ1.2-2 mm | φ1.2-4 mm | φ1.4-5 mm | φ2.0-5 mm | |
| Maximum stranded conductor OD | φ14 mm | φ28 mm | φ35 mm | φ45 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 26-435 | 39-695 | 44-770 | 48-840 |
| 12 Bobbin Stranding Cage | 30-526 | 43-774 | 47-858 | 50-928 | |
| 18 Bobbin Stranding Cage | 34-639 | 47-858 | 55-1001 | 65-1201 | |
| 24 Bobbin Stranding Cage | 38-749 | 51-940 | 63-1151 | 75-1601 | |
| Rotating Speed | 6 Bobbin Stranding Cage | 218 r/min | 120 r/min | 106 r/min | 55 r/min |
| 12 Bobbin Stranding Cage | 118 r/min | 110 r/min | 97.5 r/min | 45 r/min | |
| 18 Bobbin Stranding Cage | 108 r/min | 100 r/min | 82.9 r/min | 35 r/min | |
| 24 Bobbin Stranding Cage | 98 r/min | 90 r/min | 74 r/min | 25 r/min | |
| Capstan | Capstan Wheel Diameter | 1000 mm | 1600 mm | 1800 mm | 2000 mm |
| Maximum Haul-off Force | 2T | 5T | 10T | 15T | |
| Motor Power | 18.5 KW | 22 KW | 37 KW | 55 KW | |
| Bobbin Size | 315 mm | 400 mm | 500 mm | 630 mm | |
| Center Payoff Bobbin | 315 mm | 1250 mm | 1600 mm | 1600 mm | |
| Take-up Bobbin | 1250 mm | 2000 mm | 2000 mm | 2500 mm | |
| Maximum Haul-off Linear Speed | 25 m/min | 30 m/min | 34.7 m/min | 20 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm |
1100 mm
|
|
4. Photo
5. Packing photo
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
