Product Details:
Payment & Shipping Terms:
|
| Name: | Belt Type Cable Capstan/pulling Machine | Type: | Caterpillar Type |
|---|---|---|---|
| Usage: | Wire Pulling | Material: | Steel/Cu/Al |
| Linear Speed: | 40m/min | Pulling Force: | 1600 |
| Equipment Painting: | Optional | Guarantee Time: | 1 Year |
| Highlight: | Belt Type Cable Capstan Extruder,Stranding Cable Pulling Machine,Cable Capstan Extruder |
||
Belt Type Cable Capstan / Pulling Machine Stranding Cabling Extruder
1. Application
Haul-off Caterpillar machine is mainly used for help to pull cable after stranding, extruder or cabling,the whole series has more than ten specs of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.With electronic meter, it can display the line speed and meter length in time.
2. Main technical data
| Max pulling force | 1600KG |
| OD of applicable cable | 10~100 mm |
| Linear speed | 40m/min |
| Touching length of flat-belt | 2300mm |
| Width of belt | 120mm |
| The QTY of cylinder | 7pairs (Dia. of cylinder: 100) |
| Driving motor | 11KW(AC motor with inverter) |
|
Up and down flat-belt haul-off type; compacting and tensioning pneumatically. # shape wire guiding rollers are equipped on wire inlet and outlet. |
|
3. Company introduction
Hejian Baohong Electrical Machinery Co., Ltd. is a professional Stranding Machine manufacturer which produces Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine.
Hejian Baohong Electrical Machinery Co., Ltd., the founder Mr. Cheng has spent more than 30 years in the wire and cable machines manufacturing industry. With a wealth of experience, Mr. Cheng started the company in 2006. In the beginning, our company is very small, less than 10 workers and less than 1000 square meters.
After a long period of development, Hejian Baohong Electrical Machinery Co., Ltd., can produce Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine and Various Auxiliary Machinery.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.
Hejian Baohong Electrical Machinery Co., Ltd., has developed into one of the most important Stranding Machine Manufacturer in China.

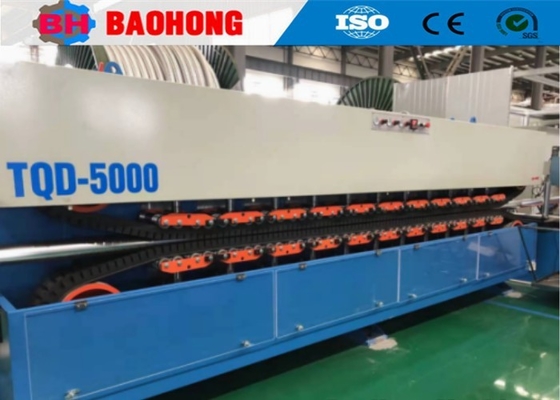

4. Photos
