| Product Name: | Dual Wheel Capstan Cable Pulling Machin | Type: | Capstan Type |
|---|---|---|---|
| Application: | Wire Pulling | Material: | Steel/Cu/Al |
| Linear Speed: | 8～70m/min | Haul-off Force: | 15000kg |
| Color: | Customer Requirement | Warranty Period: | 12 Months |
| Highlight: | Dual wheel capstan cable pulling machine,Wire and cable stranding machine,Cable machine accessories with warranty |
||
Dual Wheel Capstan Cable Pulling Machine for Wire and Cable Stranding Machine
1. Application:
• Extruder Lines
• Steel Rope Stranding Lines
• Skip Strander
• Planetary Strander
Our dual capstan is designed for high-performance stranding of power cables and other large-size conductors, offering stable operation, high synchronization accuracy, and reliable traction performance.

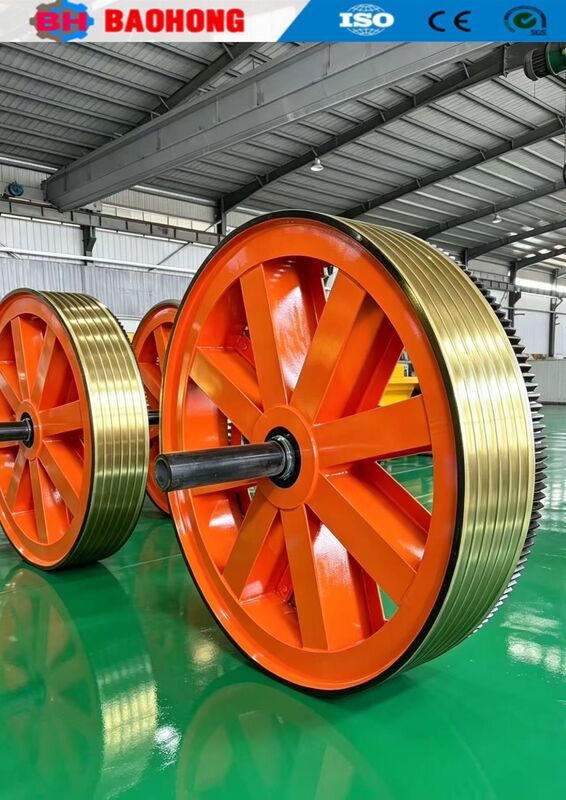

Ø2000/2500mm dual active capstan wheels with a dual-drive and dual-capstan configuration, ensuring stable and powerful cable traction. The wire distribution system adopts a natural wire guiding method for smooth and accurate wire arrangement.
The capstan wheels feature smooth U-shaped grooves to reduce cable abrasion and ensure stable cable running. Pneumatic wire pressing devices effectively prevent wire loosening and slipping when the machine stops, improving operational stability and production safety.
The capstan gear rings are manufactured from high-strength cast steel, while the capstan wheels are made of robust steel construction to ensure excellent strength, durability, and long-term reliability. The complete capstan system provides highly synchronized operation with a maximum traction force of up to 15 tons.
2. Main technical datas
| Type | capstan type |
|
Diameter of capstan whee |
Φ 2300mm |
|
Linear speed |
8～70m/min |
|
Max. pulling force |
15000kg |
3. Photos
4. Company introduction
Hejian Baohong Electrical Machinery Co., Ltd is a professional manufacturer of rigid stranding machine, skip stranding machine, skip laying-up machine, cradle laying-up machine, tubular stranding machine and planetary stranding machine. Wire armoring machine, steel tape armoring machine, copper tape screening machine, fork stranding machine.
Mr. Zheng, the founder of Hejian Baohong Electrical Machinery Co., LTD., has worked in the wire and cable machinery manufacturing industry for more than 30 years. With a wealth of experience, Cheng founded the company in 2006. In the beginning, our company was small, with less than 10 employees and less than 1,000 square meters.
After a long period of development, Hejian Baohong Electrical Machinery Co., Ltd., can produce Rigid Stranding Machine, Skip Stranding Machine, Skip Laying Machine, Cradle Laying up Machine, Tubular Stranding Machine, Planetary Stranding Machine. Wire Armoring machine, Steel Tape Armoring Machine, Copper Tape Screening Machine, Fork Stranding Machine and Various Auxiliary Machinery.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.
Hejian Baohong Electrical Machinery Co., Ltd., has developed into one of the most important Stranding Machine Manufacturer in China.
