| Name: | High Progress Automatic Aluminium Alloy Cable Pulling Machine | Type: | Caterpillar |
|---|---|---|---|
| Usage: | Wire Pulling | Materials: | Steel/Cu/Al |
| Linear Speed: | 40m/min | Pulling Force: | 1600 |
| Equipment Color: | According To Customer Requirement | Warranty Time: | 1 Year Guarantee |
| Highlight: | Aluminium Alloy Cable Pulling Machine,Caterpillar Cable Pulling Machine,40m/Min Cable Caterpillar |
||
High Progress Automatic Aluminium Alloy Cable Pulling Machine
1. Application
This machine is mainly used for various cable production lines for single machine or front and rear double traction.The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel,with electronic meter, it can display the line speed and meter length in time.
2. Main technical datas
| Max pulling force | 1600KG |
| OD of applicable cable | 10~100 mm |
| Linear speed | 40m/min |
| Touching length of flat-belt | 2300mm |
| Width of belt | 120mm |
| The QTY of cylinder | 7pairs (Dia. of cylinder: 100) |
| Driving motor | 11KW(AC motor with inverter) |
|
Up and down flat-belt haul-off type; compacting and tensioning pneumatically. # shape wire guiding rollers are equipped on wire inlet and outlet. |
|

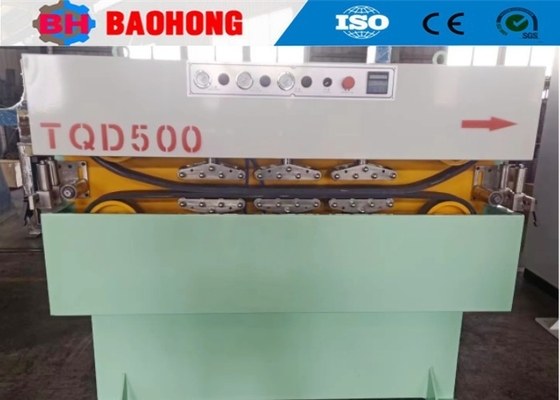

3. Photos
4. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
5. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
