| Name: | Custom Stepless Cable Taping Machine 15 - 80mm Width | Max. OD Of Taping Wire: | 100mm |
|---|---|---|---|
| Taping Width: | 15~80 Mm | Pitch Change: | Step-less,adjustable |
| Taping Tension: | 2.5~15kg | Taping Direction: | Customer Requirements |
| Equipment Painting: | Customer Requirement | Warranty Time: | 1 Year |
| Highlight: | 80mm Width Cable Taping Machine,Stepless Cable Taping Machine,15kw Cable Tape Wrapping Machine |
||
Custom Stepless Cable Taping Machine 15 - 80mm Width
1. Application
The machine is used for cable tapping , the package belt (mica tape, tissue tape, aluminum foil, polyester film, etc. ) through the turntable rotation, around wrapped in the core line, with a single around the header. Is mainly used for wires, power cables, control cables, fiber optic cable and other insulation core wound package.
2. Main technical datas
| Max. OD of taping wire | 100 mm |
| ID of hollow shaft | 120 mm |
| Taping pad size (O.D.× I.D.×W.) | 600 x 80mm x (15~80mm) |
| Taping width | 15~80 mm |
| Thickness of tape | 0.1~0.5 mm |
| Driving motor | 15 KW(AC motor with inverter) |
| Max. rotating speed of taping head | 800 r/min(Taping width:80mm) |
| Max. rotating speed of taping head | Non-woven fabric, glass cloth, semiconductor fabric and so on |
| Taping tension | 2.5~15KG |
| The structure of taping head | 2B, Eccentric |
| Pitch changing | Step-less |
|
Pneumatic brake device |
|
3. Spare Parts Brands
3.1 Motor: Siemens
3.2 Inverter : Siemens
3.3 Temperature Control Meter: Japan RKC
3.4 Auxiliary Relay: Japan Omron
3.5 Bearing : NSK, SKF

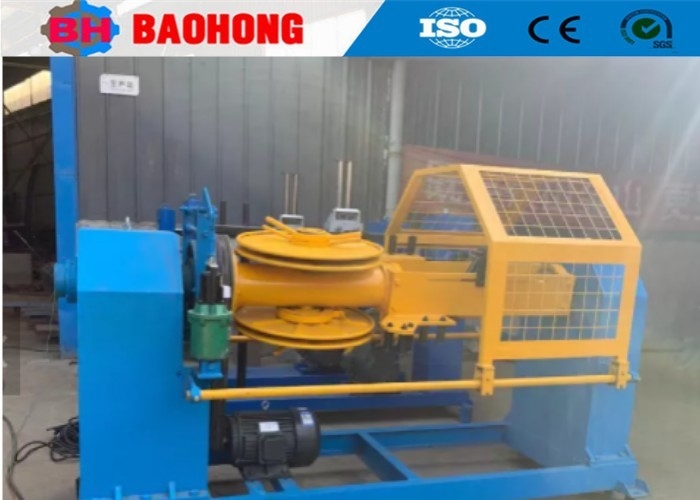

4. Photos
5. Packing Photos
6. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
7. FAQ
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
− Q: Why do I choose your company?
A: We have more than 15 years of professional experience in the production of cable machinery, providing high-quality,high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
