Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
With many years of rich experience accumulated in the service of cable industry, Baohong Machinery is committed to meet the personalized requirements of customers, to provide high quality products, strong technical support and perfect after-sales service to all China and other international and regional customers, such as Malaysia, Vietnam, Iran, India, Tanzania, South Korea, Cambodia, Almeria, Russia, Ukraine, etc. We are becoming the trustworthy partner to our domestic and foreign customers.
Now, our company adheres to and efforts to our business philosophy "Professional Manufacturing, Sincere Service", Baohong Machinery is constantly pioneering and innovating, is committed to be a super first-class cost-effective wire and cable machinery manufacturers at home and abroad.
Contact Us
Tel: +86-317-3616988
Fax: +86-317-3616898
Mob/Whatsapp/WeChat: +86-182-5653-1268
E-mail: bhmachines2006@gmail.com
Address: Baoantun Village, Shawa Industrial Area, Hejian City, Hebei Province, China
Hejian BaoHong Electrical Machinery Co., Ltd. is a professional Cable Machine manufacturer which produce Rigid Stranding Machine, Skip Stranding Machine, Planetary Stranding Machine, Fork Stranding Machine, Tubular Stranding Machine, Laying up Machine and Steel Reels & Drums.
The founder Mr Cheng has spent more than 30 years in the wire and cable machines manufacturing industry. With a wealth of experience, Mr Cheng started the company in 2006. In the beginning, our company is very small, less than 10 workers and less than 1000 square meters.
Now, Hejian BaoHong Electrical Machinery Co., Ltd. Covers an area of 12000 square meters, production workshop 8000 square meters. Our company has more than 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present.
Hejian BaoHong Electrical Machinery Co., Ltd. Has develped into one of the most important Stranding Machine Manufacturer in China. Our Rigid Stranding Machine, Laying up Machine, Tubular Stranding Machine, Skip Stranding Machine and Planetary Stranding Machine are exported to allover the world and won wide acclaim at home and abroad customers.
Focus on machines for wire and cable.
31 years experience in the wire and cable industry.
Perfect pre-sales and after-sales service team.
All machines were tested and adjusted before delivery
24 hours online, Anytime solve your installation and operation questions.
Warranty: 12 months
We produce the machines below:

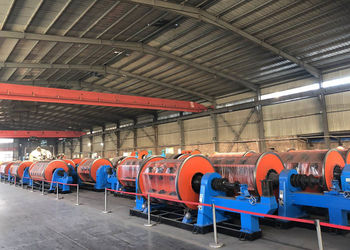

Rigid Stranding Machine
The rigid stranding machine is used for stranding Copper, Aluminum and Aluminium alloy wires and conductors with long length and large cross section.
Stranding compressed, compacted round or sector shaped ( straight or pre-spiraling ) as per customer requirements
We also customise this cage type stranding machine in accordance with customers’ requirements.
Rigid frame stranding is designed with 1+6+12+18+24+30+36 Bobbin Cage.
Bobbin: 500mm, 630mm, 710mm DIN 46397 Standard / Modified
Skip Stranding Mahcine
Application
The machine is used for stranding copper wire, aluminum wire and steel wire. And it can be used as cable core laying machine.
Main technical parameter
| Name |
Unit |
Data |
| Single wire diameter |
mm |
Copper wire Φ1.5-Φ5.0
Aluminum wire Φ1.8-Φ5.0
Steel wire Φ1.8-Φ4.0
|
| The maximum strand diameter |
mm |
Φ16 |
| Max rotation speed of the bow |
rpm |
1000 |
| Stranding pitch |
mm |
31.1-235 mm ( 36 stage ) |
| Diameter of draught wheels |
mm |
Φ1200×Φ1200 |
| Main motor power( AC variable frequency speed regulation ) |
kw |
37 |
| The specifications of the bobbin |
/ |
d1: 630 mm
L1: 475 mm
d4: 127 mm |
| Take-up bobbin |
/ |
PN630-PN1600 |
Bow type structure, totally 7 support boxes support 6 pairs of stranding bows on each pair end. The bow material is carbon fiber, which is durable. The machine is equipped with wire-break test device for each payoff unit in each bow. When wire is broken, and payoff bobbin will decrease the rotating speed, then the detector will get the data, then the machine will stop automatically. This will detect the 99% wire broken.
Planetary Stranding Machine
Wire Cable Planetary Stranding Cable Machine 1+6+12+18 / 500 mm Payoff Bobbin
Usage
The machine is used for stranding Cu, Al wire, ACSR and insulated wires with back-twist. It also can steel-armoring or Cu-screening cables.
Main Character
1. There are 2 method for back-twist: back-twist circle and planetary mechanism.
2. The non-axle thimble twisting cage is equipped with mechanism friction tension control.
3. The transmission shafts link all the machine parts together to keep stable stranding pitch, which can also be chosen frequency synchronization to control the machine.
4. The machine is widely used, and manipulated conveniently with low-noise.
Configuration
Pay-off, mainframes of 6-reel, 12-reel, 18-reel, 24-reel and 30-reel, die holder, tape lapper, armor unit, haul-off, take-off, driven system and electrical system.
Skip Laying Machine
Mainspecification
| Maximum core diameter |
Ф20 mm |
| Maximum rotating speed of the stranding cage |
150 r/min |
| Stranding pitch |
77~773 mm |
| Wrapping head speed |
700 r/min |
| Caterpillar pneumatic traction |
2000kg |
| Haul off speed |
16.5~90 m/min |
| Payoff bobbin size |
PN 1250 |
| Take-up bobbin size |
PN1250~PN2500 |
| Main motor |
37KW(AC) |
| Traction motor |
15 KW |
| Wrapping motor |
15 KW(AC frequency conversion motor) |
| Equipment center height |
1000 mm
|
The machine is used for cabling control cable, mining cable, rubber sheathed cable and ABC cable.
Laying up Machine
The laying up machine is used for making various multi-core rubber cables, plastic power cables, XLPE cables (crosslinked cables), telephone cables, signal cables, control cables and armoured cables with various cross-sections.
Laying up machine is designed with 1+1+3 or 3+3 Bibbin Cage.
Bobbin: 800mm, 1000mm, 1250mm, 1400mm, 1600mm DIN 46395 Standard / Modified
Tubular Stranding Machine
The tubular stranding machine is used for manufacturing high carbon & low carbon steel wire rope, copper & aluminium conductor, multi-core cable.
High speed stranding with back twist, for copper / aluminium round & compact conductors, steel wire stranding and multi-core cable.
Tubular stranding machine is designed with 1+6, 1+8, 1+10, 1+12, 1+18, 1+24 Bibbin Cage.
Bobbin: 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, 800mm, 1000mm, 1250mm DIN 46395 & DIN 46397 Standard / Modified.
China International Cable & Wire Fair 2016
2017 Thailand (Southeast Asia) International Pipe Wire Exhibition
2017 India International Wire & Cable & Equipment Exhibition
WireShow 2025, the 12th China International Wire & Cable Industry Exhibition, in Shanghai.
