Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wire And Cable Skip Type Stranding Machine | Reel Sizes: | 500 / 630/700/800 |
|---|---|---|---|
| Stranding Material: | Steel & Carbon Bow | Rotation Speed: | 1000 R/min |
| PLC,Touch Screen: | SIEMENS | Bearing Brand: | NSK |
| Warranty Time: | 1 Year | Machine Painting: | Customized |
| Highlight: | wire stranding machine,cable stranding machine |
||
Wire and Cable Skip Type Stranding Machine High Speed Steel And Carbon Bow
1. Application
The skip stranding machine is used for stranding 1+6 structure conductor,and the conductor from 15 sqmm to 100 sqmm aluminum and copper 1+6 conductor.
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
| Center Payoff Bobbin | 630*475*127 | 710*530*127 | 800*600*127 | |
| Take-up Bobbin | 1250*950*80 | 1600*1180*80 | 1600*1180*80 | |

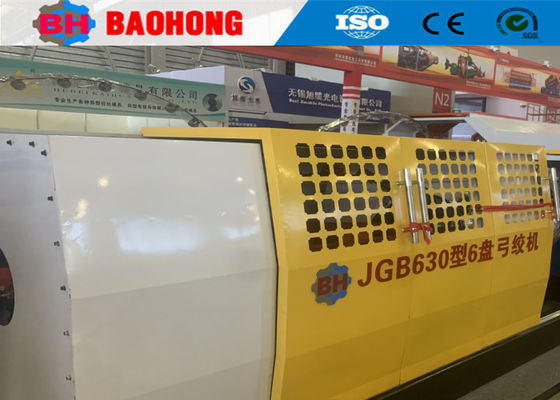

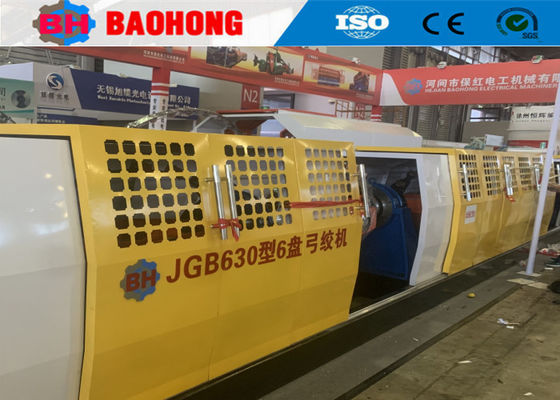

3. Photos
4. Packing photos
5. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd. covers an area of 10,000 square meters, production workshop 8000 square meters. The company has 60 employees, including 10 R&D personnel. At present, the annual output value of more than 10 million US dollars, has developed into one of the most important domestic stranding machine production enterprises.
