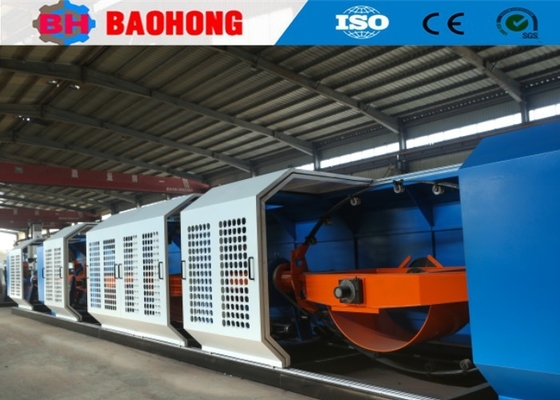

Rotating Bow Type Skip Strander Machine Wire Cable Making Equipment

1. Application

This machine is mainly used for stranding of copper wire or Al wire, ACSR, and steel stranded wire.

2. Structure

2.1 Single wire diameter    Copper wire      φ1.3-φ4.5mm

                            Aluminum wire   φ1.5—φ5.0mm

                            Steel wire           φ1.0—φ3.8mm

2.2 Stranding pitch                                      40-372.7mm

2.3 Main motor power                                  37KW

2.4 Rotating speed of skip                            800r/min

2.5 Take-up reel specifications                     PN800-PN1600

2.6 Capstan wheel specifications                 φ1200(Dual-capstan device)

2.7 Bobbin size                                             PND560

2.8 Dimensions                                             14600mm*1710mm*1650mm

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
