Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Cable &Wire Skip Type Stranding Manufacturing Machine | Reel Sizes: | 500,630 Etc |
|---|---|---|---|
| Usage: | Cable Skip Cable Stranding | Materials: | Copper, Aluminum Wire And Steel Wires |
| Speed: | 1000 R/min | PLC Brand: | SIEMENS |
| Warranty Period: | 1 Year | Color: | Optional |
| High Light: | wire stranding machine,cable stranding machine |
||
Industrial Cable &Wire Skip Type Stranding Manufacturing Machines 630/1+6
1. Application
The skip type stranding machine is used for stranding insulated cable core of control cable and steel wire armoring for cable.
· Control Cables Assembly with Back Twist
· Signal Cables Assembly with Back Twist
· Insulated Cables Assembly such as Robot Cables with Back Twist
2. Technical datas
| Model (Skip Stranding Machine) | JGB-630(500) | JGB-700 | JGB-800 | |
| Diameter of single wire | Copper | φ1.8-5 mm | φ2-5 mm | φ2.5-5 mm |
| Aluminum | φ2.0-5 mm | φ2.5-5 mm | φ3.0-5 mm | |
| Galvanized steel wire | φ1.0-4.0 mm | φ1.2-4.0 mm | φ1.5-4.0 mm | |
| Maximum stranded conductor OD | φ35-55 mm | φ35-55 mm | φ35-55 mm | |
| Stranding Pitch | 6 Bobbin Stranding Cage | 31.1-235.0mm | 31.1-235.0mm | 31.1-235.0mm |
| Max. Rotating Speed | 6 Bobbin Stranding Cage | 1000 r/min | 800 r/min | 700 r/min |
| Capstan | Capstan Wheel Diameter | 1200 mm | 1400 mm | 1400 mm |
| Maximum Haul-off Force | 10 T | 10 T | 12 T | |
| Motor Power | 37 KW | 45 KW | 55 KW | |
| Bobbin Size | 630*475*127 | 710*530*127 | 800*600*127 | |
| Center Payoff Bobbin | 630*475*127 | 710*530*127 | 800*600*127 | |
| Take-up Bobbin | 1250*950*80 | 1600*1180*80 | 1600*1180*80 | |
| Maximum Haul-off Linear Speed | 235 m/min | 200 m/min | 170 m/min | |
| Central Height | 1000 mm | 1000 mm | 1000 mm |
|

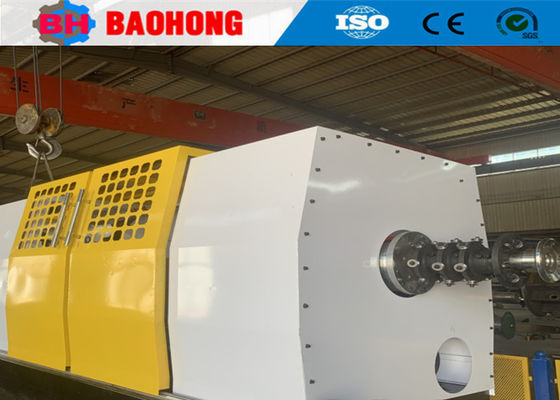

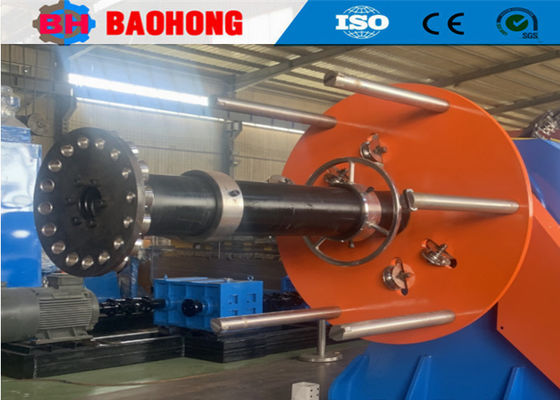

3. Photo
4. Packing photo
5. Our factory and introduction
Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.
Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.
Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.
